Rondelle piatte in PVDF Kynar - DIN 125 A

80 In Stock
SKU: PVFWAM3
Prezzo normale €0,31 - €0,47 EUR / each Ex. VAT

Sconti per quantità disponibili:

1 Pezzo €0,47
20 Pezzi €0,45
50 Pezzi €0,42
100 Pezzi €0,38
250 Pezzi €0,35
500 Pezzi €0,33
1000 Pezzi €0,31
2000+ Pezzi Contattaci
Mostra altro Mostra meno
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PVDF

Measurement System: Metric

Colour: Clear/Opaque

Temperatura d'uso continuo: 150°C/302°F

Infiammabilità: UL94 V-0

Rondelle piatte in PVDF Kynar - DIN 125 A conform to the following Standards/Norms:

ISO 7089

DIN 125 A

CSN 021702

PN 82006

UNI 6592

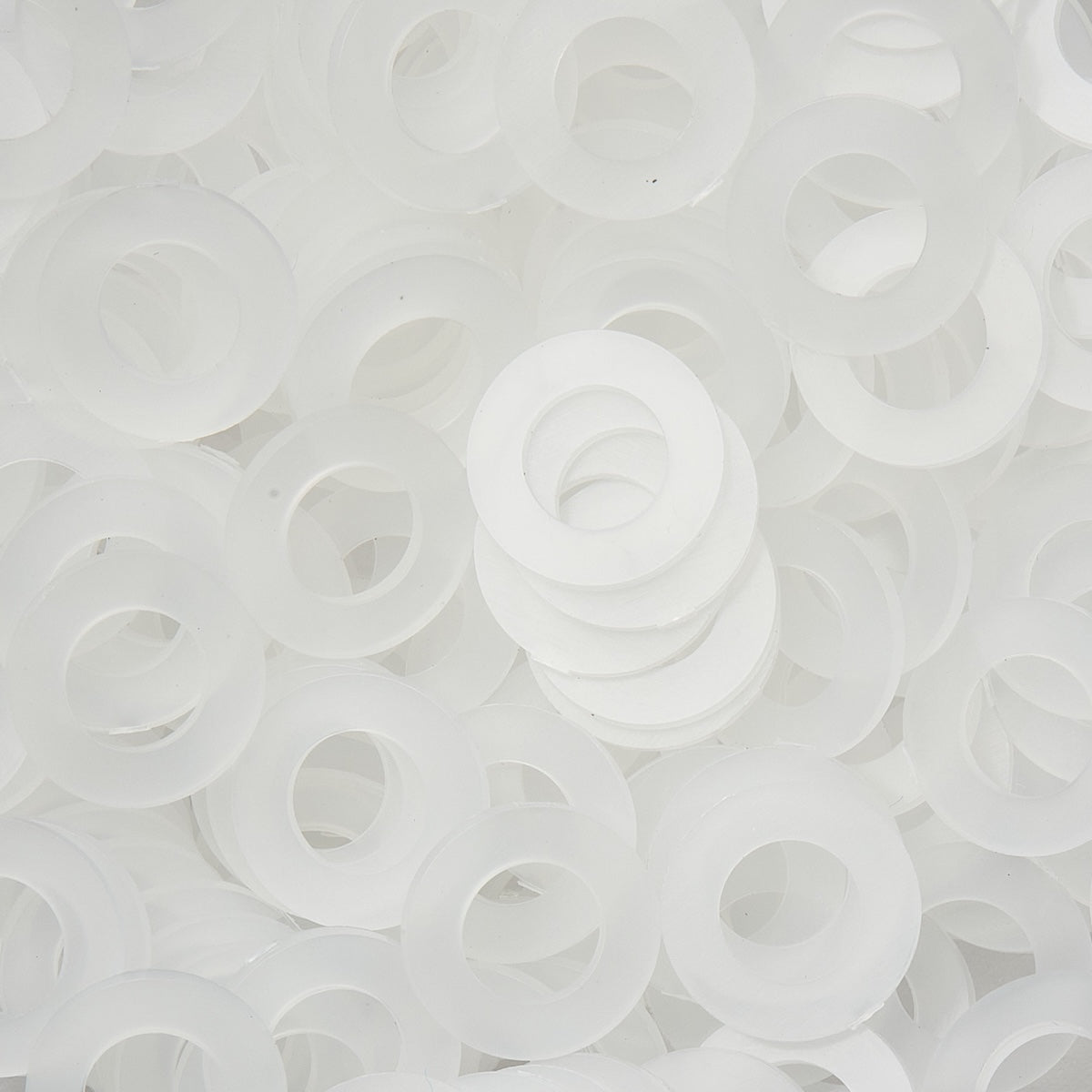

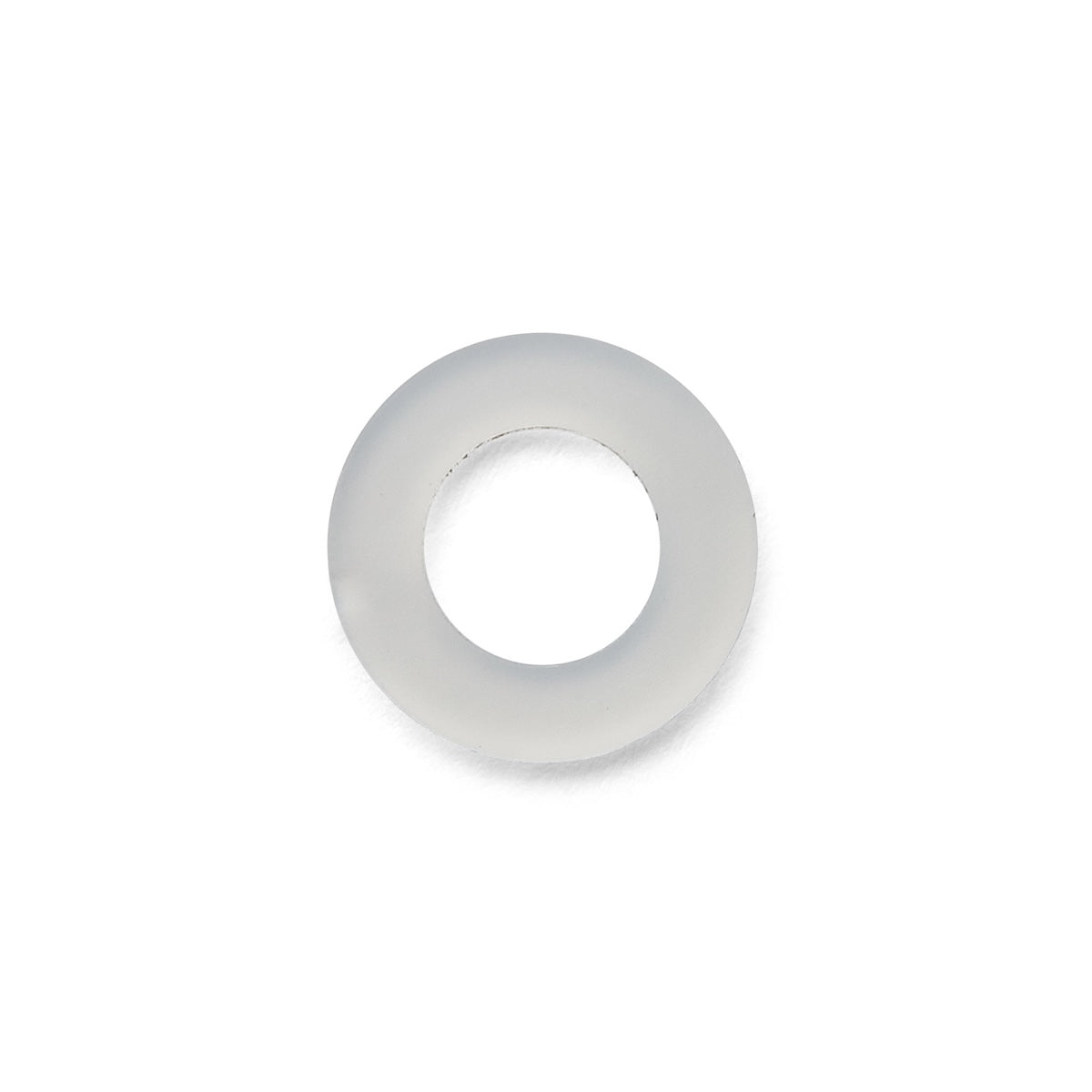

Le rondelle piatte in PVDF sono un ottimo esempio di rondelle polimeriche utilizzate in applicazioni estreme o specialistiche.

Le nostre rondelle piane in PVDF sono conformi alle specifiche DIN 125 e possono essere utilizzate in combinazione con una serie di elementi di fissaggio di materiali diversi a seconda dell'applicazione. Le rondelle piatte in PVDF sono disponibili in misure metriche standard (M2- M12).

La scheda tecnica del PVDF è disponibile di seguito.

Per ulteriori informazioni, contattateci.

The PVDF data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Rondelle piatte in PVDF Kynar - DIN 125 A

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for Rondelle piatte in PVDF Kynar - DIN 125 A in all available sizes are shown according to the product drawing above.

Key Polivinilidene Fluoruro (PVDF) Properties

Polivinilidene Fluoruro (PVDF) Datasheet

Follow the link below to view our PVDF data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PVDF Key Properties

  • Eccezionale resistenza chimica – il PVDF non è influenzato dalla maggior parte dei prodotti chimici, per ulteriori informazioni consultare la nostra scheda tecnica qui sotto. Basso assorbimento d’acqua – 0,030% a 23°C – Ottimo per uso esterno. Resistenza alla temperatura – uso continuo fino a 150°C. Resistenza alla fiamma – UL94 – V0.

  • - Peso ultraleggero. - Resistenza all’abrasione. - Resistenza all’idrolisi. - Eccezionali proprietà isolanti.

  • - Non magnetico. - Bassa conducibilità termica. - Non corrosivo. - Alta purezza.
