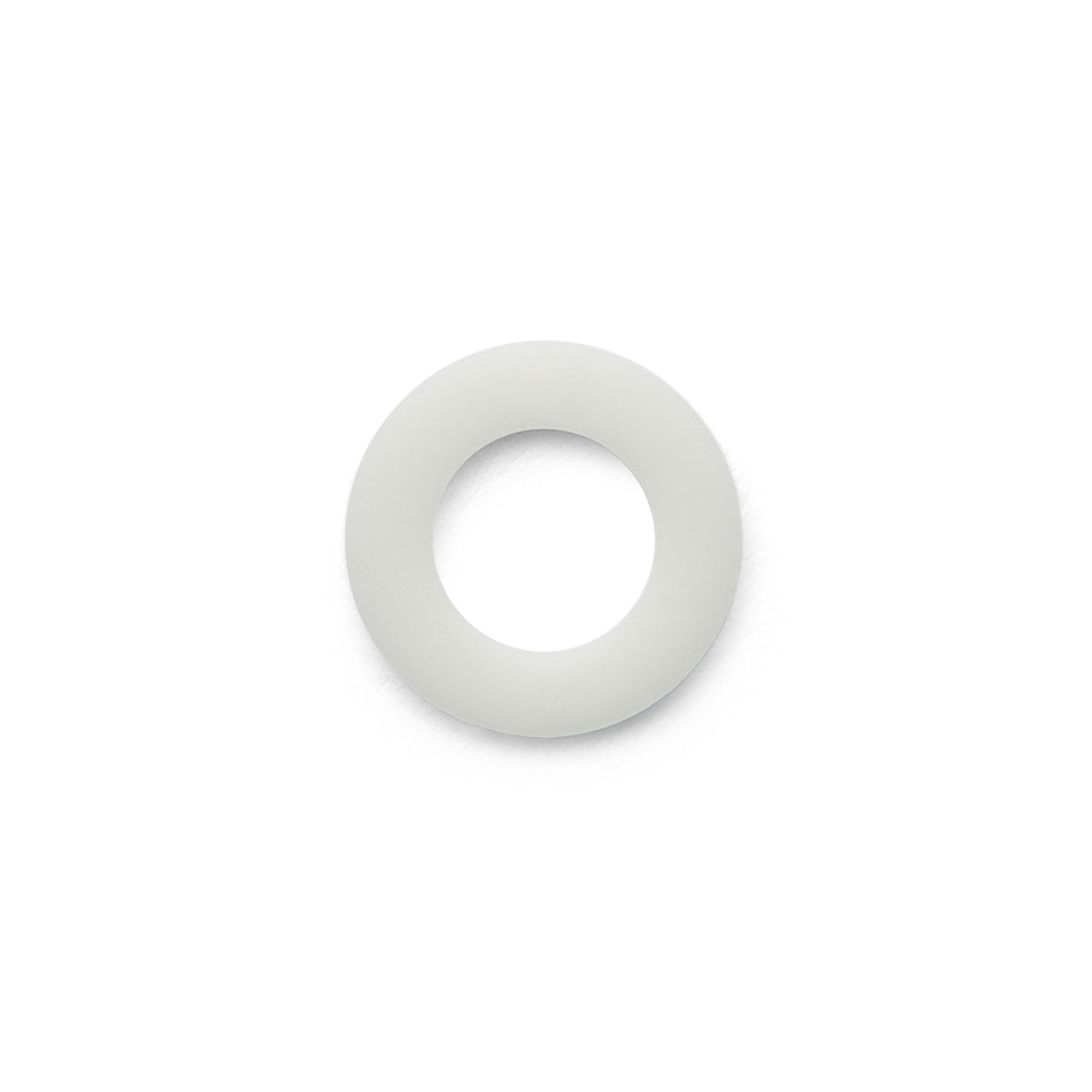

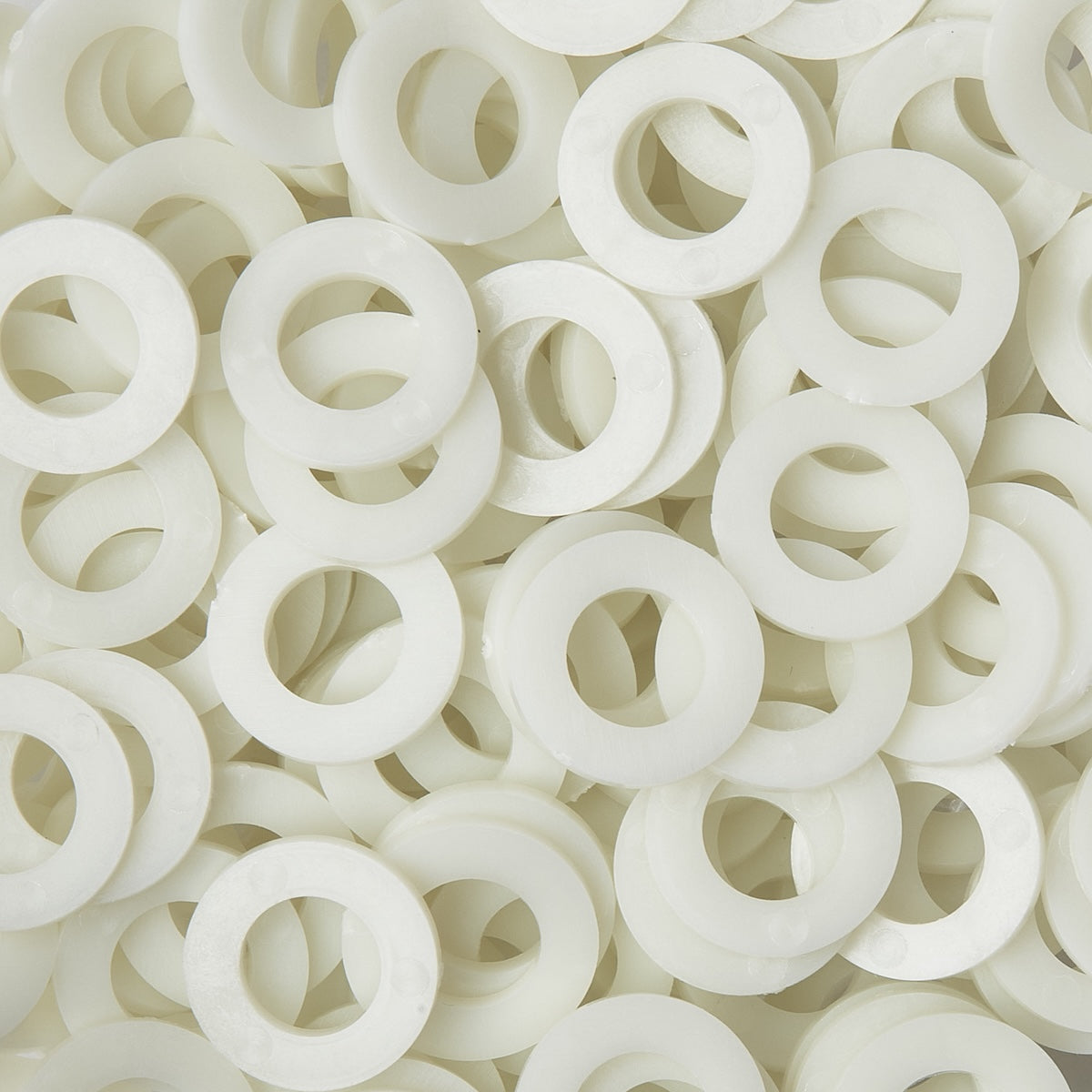

Rondelle piatte RENY

720 in stock now, more available within 14 days.
SKU: RNYWAM3
Prezzo normale €0,35 EUR / each Ex. VAT

Instant Quote Guarantee:
Inviate una richiesta di preventivo online cliccando sul pulsante qui sotto e vi sarà recapitata nella vostra casella di posta entro 5 minuti.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Volume Discount Available

Volume discount is available on this product. Log in to our B2B portal using the link below to order online or request a quotation.

View Discounts

Rondelle piatte RENY

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for Rondelle piatte RENY in all available sizes are shown according to the product drawing above.

RENY Countersunk Flat Head Screws - High Performance Polymer-Plastic Fastener Components

RENY MXD6 - 50% Glass Fibre Reinforced Nylon Datasheet

Follow the link below to view our RENY data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

RENY Key Properties

  • High Tensile Strength – RENY is among the highest performing polymer screws in terms of tensile strength on the market today (285Mpa).

    Low cost - In comparison to other engineered polymer, such as PPS, PI and PEEK.

    Low water absorption – especially when compared to Nylon 6/6, this allows dimensional stability and mechanical strength to remain high even under high water absorption environments.

    Excellent weight to strength ratio - Specific gravity (1.65).

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High heat operation (105°C)

    - Ultra low weight

  • - Flame resistance (UL94 HB)

    - Hydrolysis resistance
