Bulloni esagonali in policarbonato - DIN 933

990 In Stock
SKU: PCHB412
Prezzo normale €0,14 - €0,22 EUR / each Ex. VAT

Sconti per quantità disponibili:

1 Pezzo €0,22
500 Pezzi €0,21
1000 Pezzi €0,20
2500 Pezzi €0,18
5000 Pezzi €0,17
10000 Pezzi €0,15
20000 Pezzi €0,14
30000+ Pezzi Contattaci
Mostra altro Mostra meno
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PC

Measurement System: Metric

Drive Type: Hexagon (External)

Colour: Transparent/Natural

Temperatura d'uso continuo: 115°C/239°F

Infiammabilità: UL94 V-2

Bulloni esagonali in policarbonato - DIN 933 conform to the following Standards/Norms:

ISO 4017

DIN 933

CSN 021103

PN 82105

UNI 5739

I bulloni esagonali in policarbonato (PC) sono uno dei dispositivi di fissaggio più versatili per applicazioni generali.

Hanno anche la gamma più varia, con lunghezze da 10 mm a 70 mm e misure metriche M2-M12.

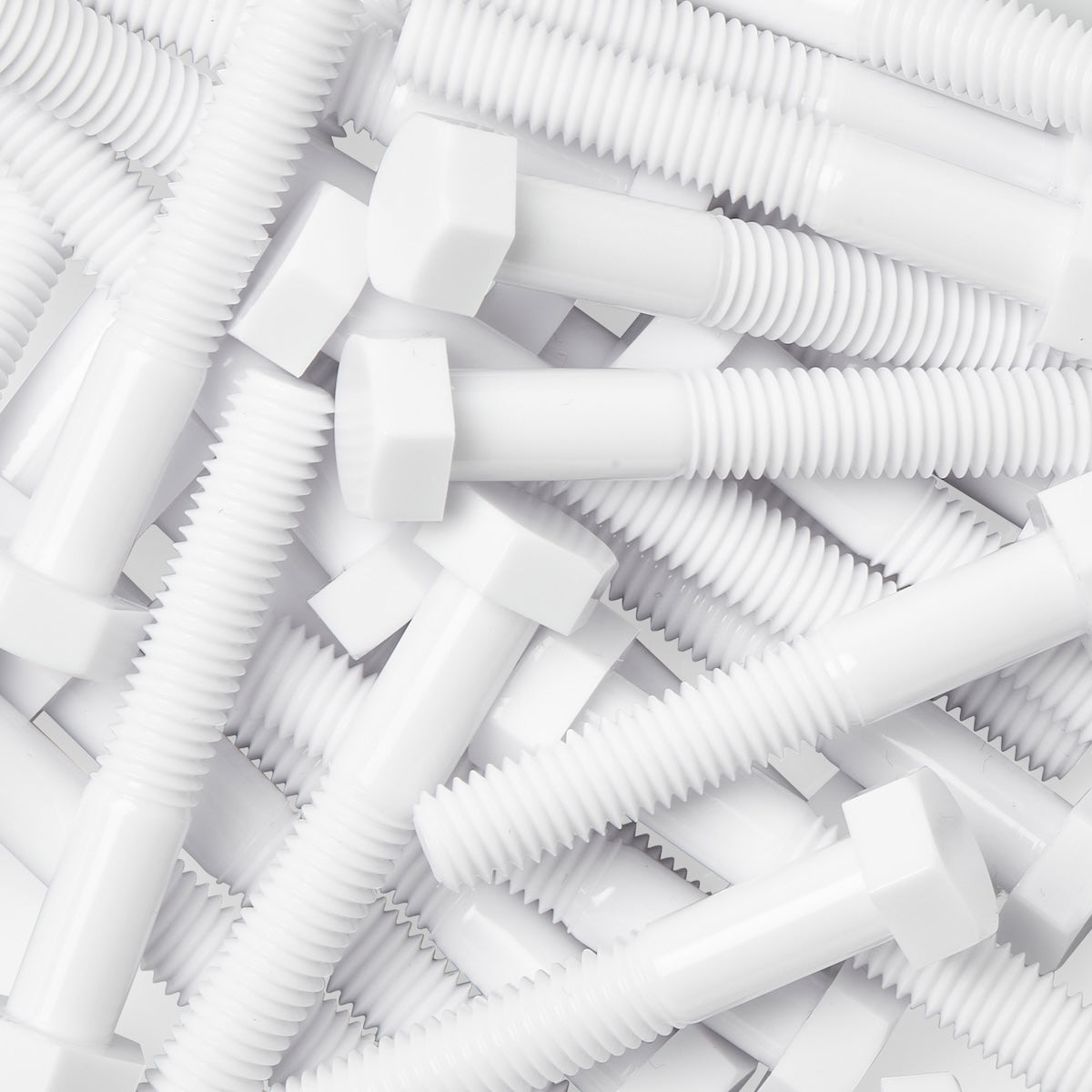

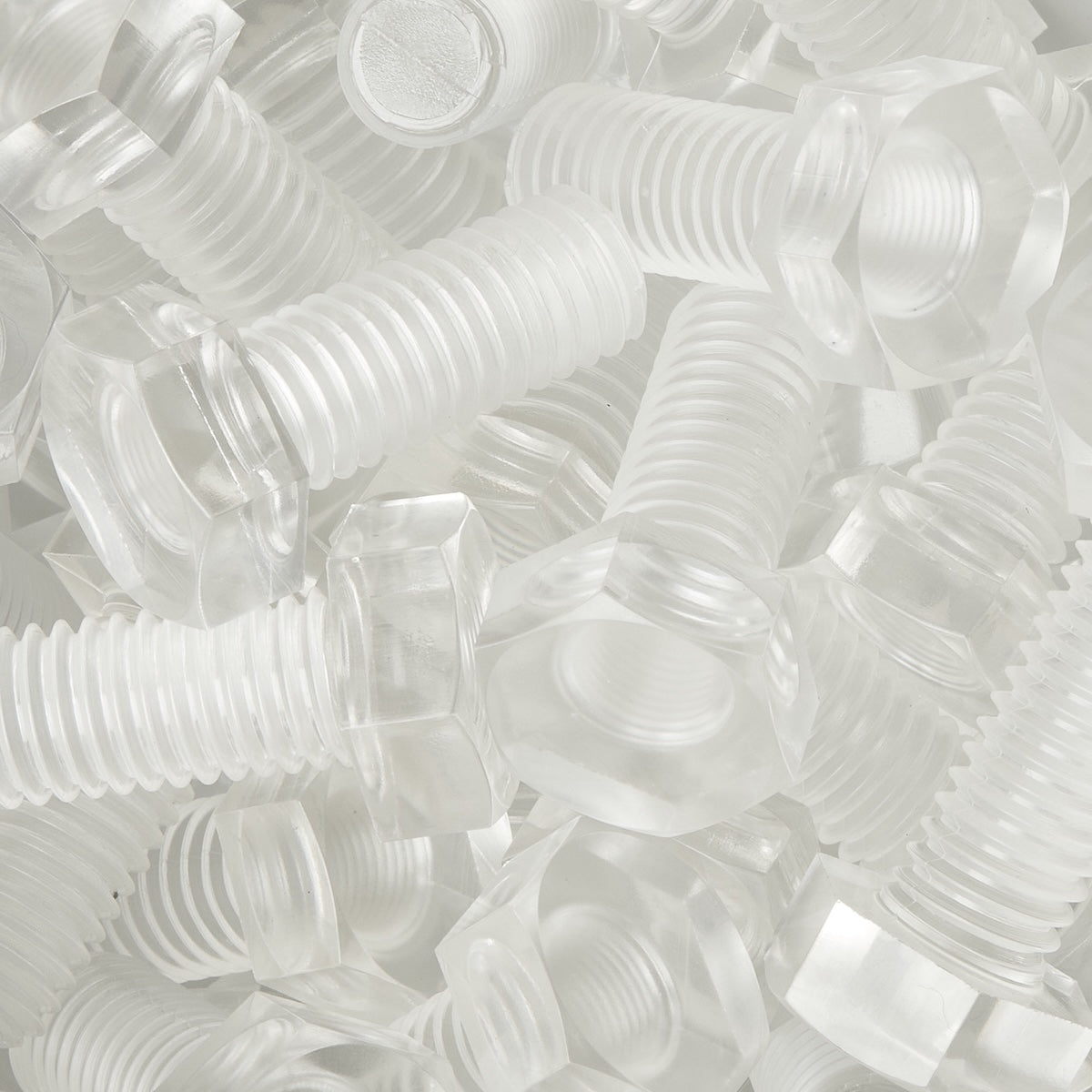

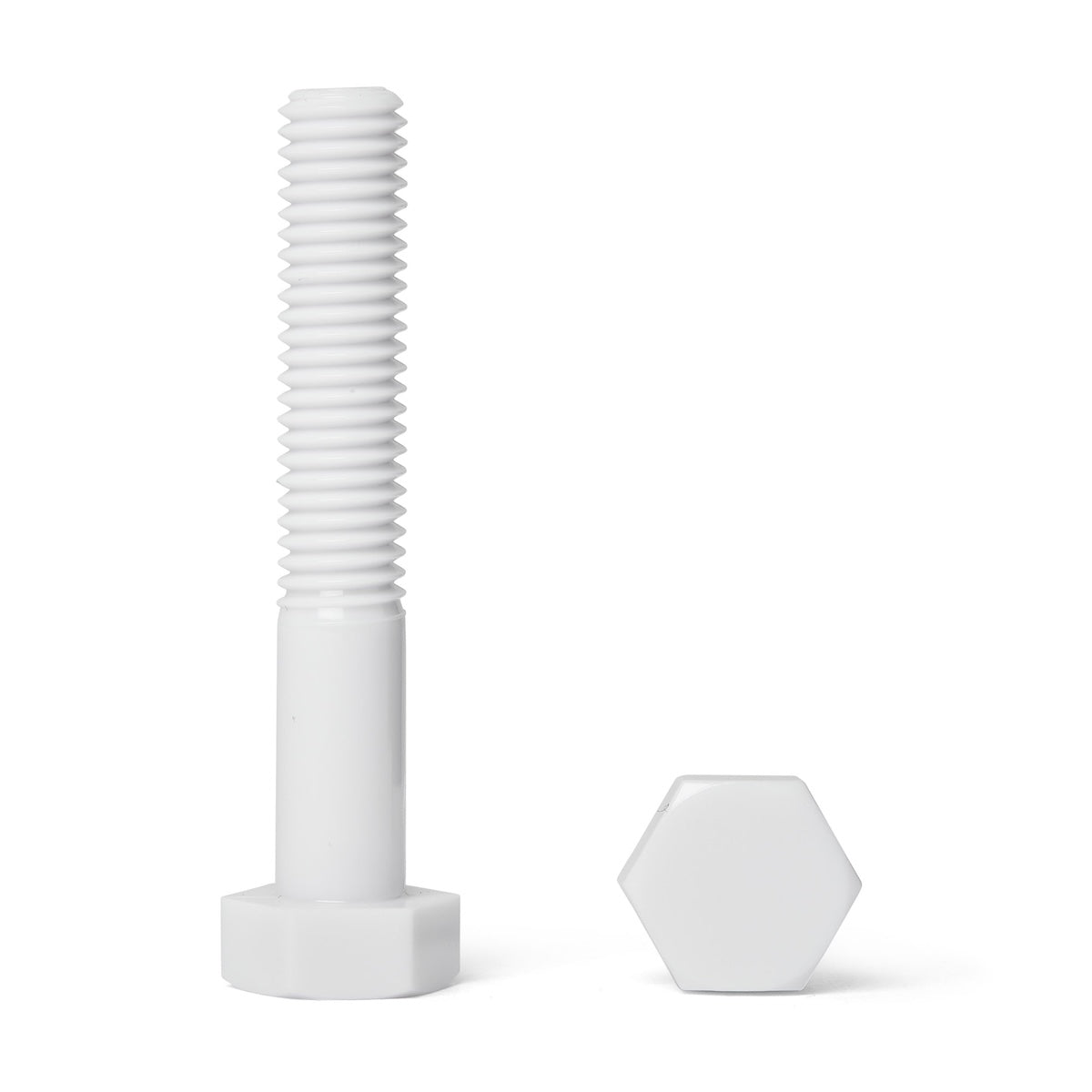

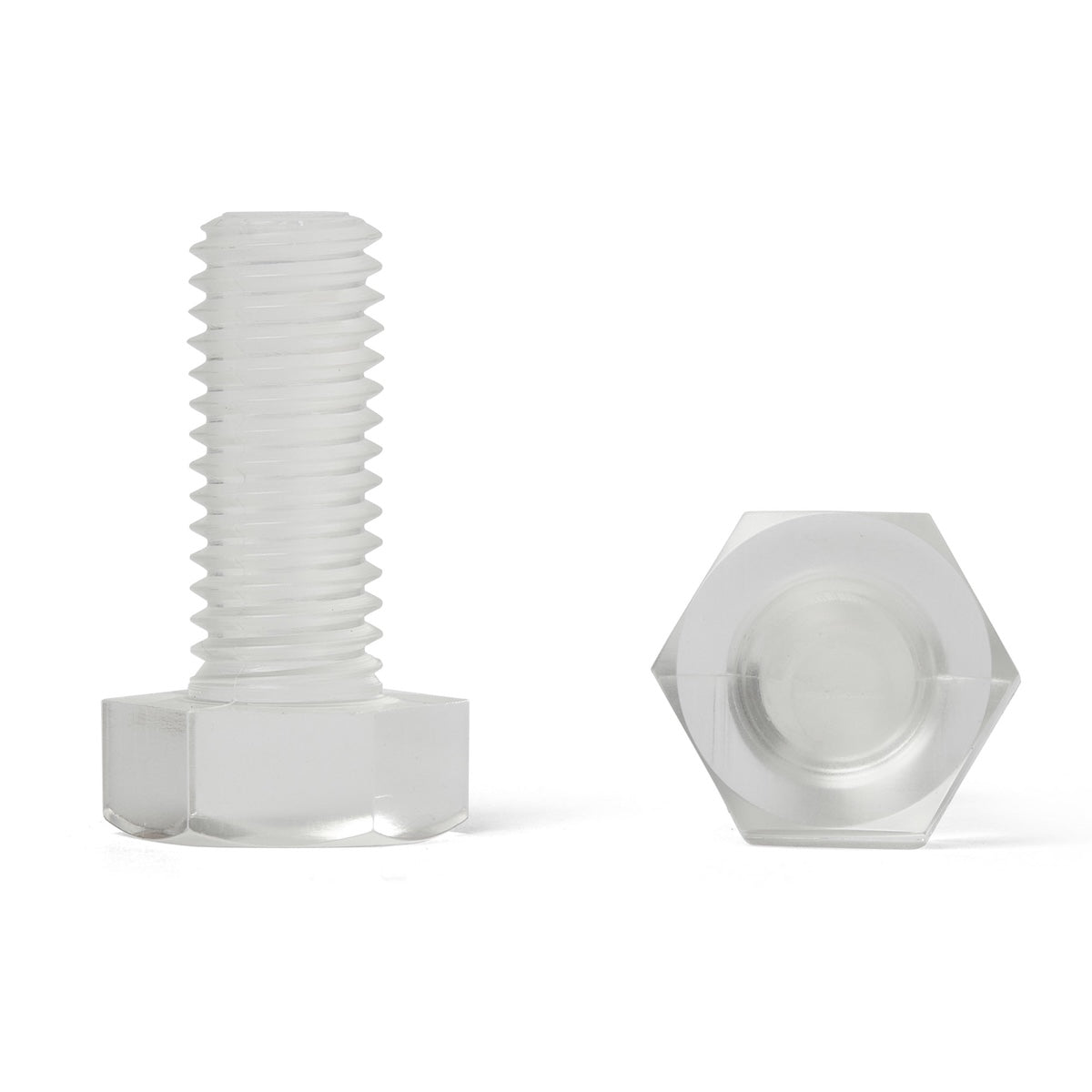

Disponibili in versione trasparente e bianca (standard trasparente per M4-M8 e standard bianco per M10-M12).

Gli elementi di fissaggio in PC sono comunemente utilizzati in applicazioni generiche grazie ai bassi costi unitari, all'elevata resistenza agli urti e alle proprietà non corrosive.

Il certificato di conformità è disponibile su richiesta.

Di seguito è riportato un link alla nostra scheda tecnica.

Cosa sono i bulloni esagonali in policarbonato?

Il policarbonato è un tipo di plastica noto per la sua forza, trasparenza e resistenza agli urti. Viene spesso utilizzato in applicazioni che richiedono queste proprietà, come la costruzione di finestre, occhiali e componenti elettronici.

I bulloni esagonali sono un tipo di fissaggio costituito da un bullone con testa esagonale e un albero filettato. Sono utilizzati in una varietà di applicazioni in cui è necessario un collegamento forte e sicuro. La testa esagonale consente un facile serraggio e allentamento utilizzando una chiave esagonale o una chiave a brugola.

I bulloni esagonali in policarbonato sono bulloni in policarbonato con testa esagonale. Vengono utilizzati in una serie di applicazioni in cui è auspicabile la combinazione della forza, della trasparenza e della resistenza agli urti del policarbonato con la praticità di un bullone esagonale. Sono tipicamente utilizzati in applicazioni in cui queste proprietà sono necessarie, come nella costruzione di finestre, occhiali e componenti elettronici.

The PC data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Bulloni esagonali in policarbonato - DIN 933

Product Drawing

Hexagon Bolt Dimension Table (ISO 4017/DIN 933)
M Size Pitch (mm) Head Width (Flat-Flat) (mm) Head Height (mm)
M4 0.7 8.0 2.8
M5 0.8 10.0 3.5
M6 1.0 12.0 4.0
M8 1.25 16.0 5.5
M10 1.5 17.0 7.0
M12 1.75 19.0 8.0

Dimension Table

Dimensions for Bulloni esagonali in policarbonato - DIN 933 in all available sizes are shown according to the product drawing above.

Key Policarbonato (PC) Properties

Policarbonato (PC) Datasheet

Follow the link below to view our PC data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PC Key Properties

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance
