Material: POM
Measurement System: Metric
Colour: White
Continuous use temperature: 95°C/203°F
Flammability: UL94 HB
Polyacetal (POM) OMEGA Type Spring (19.5-24-36L) conform to the following Standards/Norms:
Polyacetal (POM) OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, is a component designed for applications requiring excellent mechanical properties, low friction, and high dimensional stability. POM, also known as acetal, is a highly crystalline thermoplastic known for its high strength, stiffness, and resistance to wear and abrasion. These springs are engineered to provide reliable compression and durability in various demanding environments, maintaining their performance and integrity across a wide range of temperatures and conditions.
Size:
Inner Diameter (mm) - 19.5mm
Outer Diameter (mm) - 24mm
Free Length (mm) - 36mm
Spring Rate (N/mm) – 0.59-0.96
Advantages of Using Polyacetal (POM) OMEGA Type Compression Springs:
High Mechanical Strength: POM provides excellent tensile and compressive strength, ensuring robust performance under various loads.
Low Friction: The material's low friction coefficient reduces wear and improves efficiency in dynamic applications.
Dimensional Stability: POM offers high dimensional stability, maintaining its shape and mechanical properties over time and under varying conditions.
Wear and Abrasion Resistance: Excellent resistance to wear and abrasion, extending the lifespan of the springs and the components they interact with.
Chemical Resistance: Resistant to many solvents, fuels, and chemicals, making it suitable for use in corrosive environments.
Fatigue Resistance: POM exhibits good fatigue resistance, making it suitable for cyclic loading applications.
Low Moisture Absorption: The material absorbs minimal moisture, ensuring consistent performance in humid or wet environments.
Specific Applications of Polyacetal (POM) OMEGA Type Compression Springs:
Automotive Industry:
Used in various automotive components such as fuel systems, throttle valves, and interior mechanisms where high strength and low friction are required.
Consumer Electronics:
Applied in devices like printers, cameras, and other electronics where durability, precision, and smooth operation are critical.
Medical Devices:
Utilised in medical instruments and diagnostic equipment where high precision, dimensional stability, and resistance to wear are essential.
Ideal for components requiring consistent spring action and long-term reliability.
Industrial Machinery:
Employed in machinery and equipment that experience high wear and require robust components to maintain operational integrity.
Aerospace:
Used in aerospace applications where lightweight and high-strength materials are essential, such as in control systems and safety equipment.
Suitable for components exposed to varying environmental conditions.
Construction:
Applied in building materials and systems that require durable, wear-resistant components that can withstand outdoor exposure.
Plumbing and Fluid Handling:
Utilised in plumbing and fluid handling systems due to its chemical resistance and low moisture absorption.
Polyacetal (POM) OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, offer a robust and reliable solution for various demanding applications. These springs benefit from POM's high mechanical strength, low friction, dimensional stability, wear and abrasion resistance, chemical resistance, fatigue resistance, and low moisture absorption. Ideal for use in automotive, consumer electronics, medical devices, industrial machinery, aerospace, construction, and plumbing systems, these springs ensure long-lasting performance and reliability in critical environments.
The POM data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
Inner Diameter (mm) | Outside Diameter (mm) | Free Length (mm) | Solid Height (mm) | Spring Rate (mm) |
19.5 | 24 | 36 | 18 | 0.59-0.96 |
Dimension Table

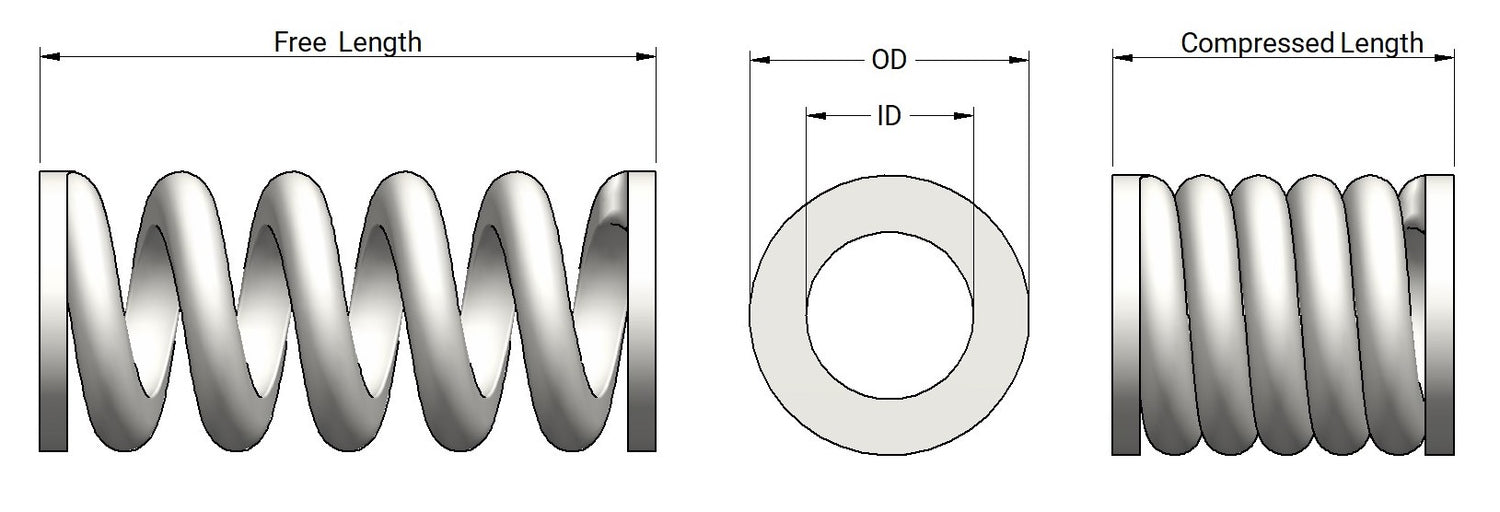

Dimensions for Polyacetal (POM) OMEGA Type Spring (19.5-24-36L) in all available sizes are shown according to the product drawing above.
Polyacetal (POM) Datasheet
Follow the link below to view our POM data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.
POM Key Properties
