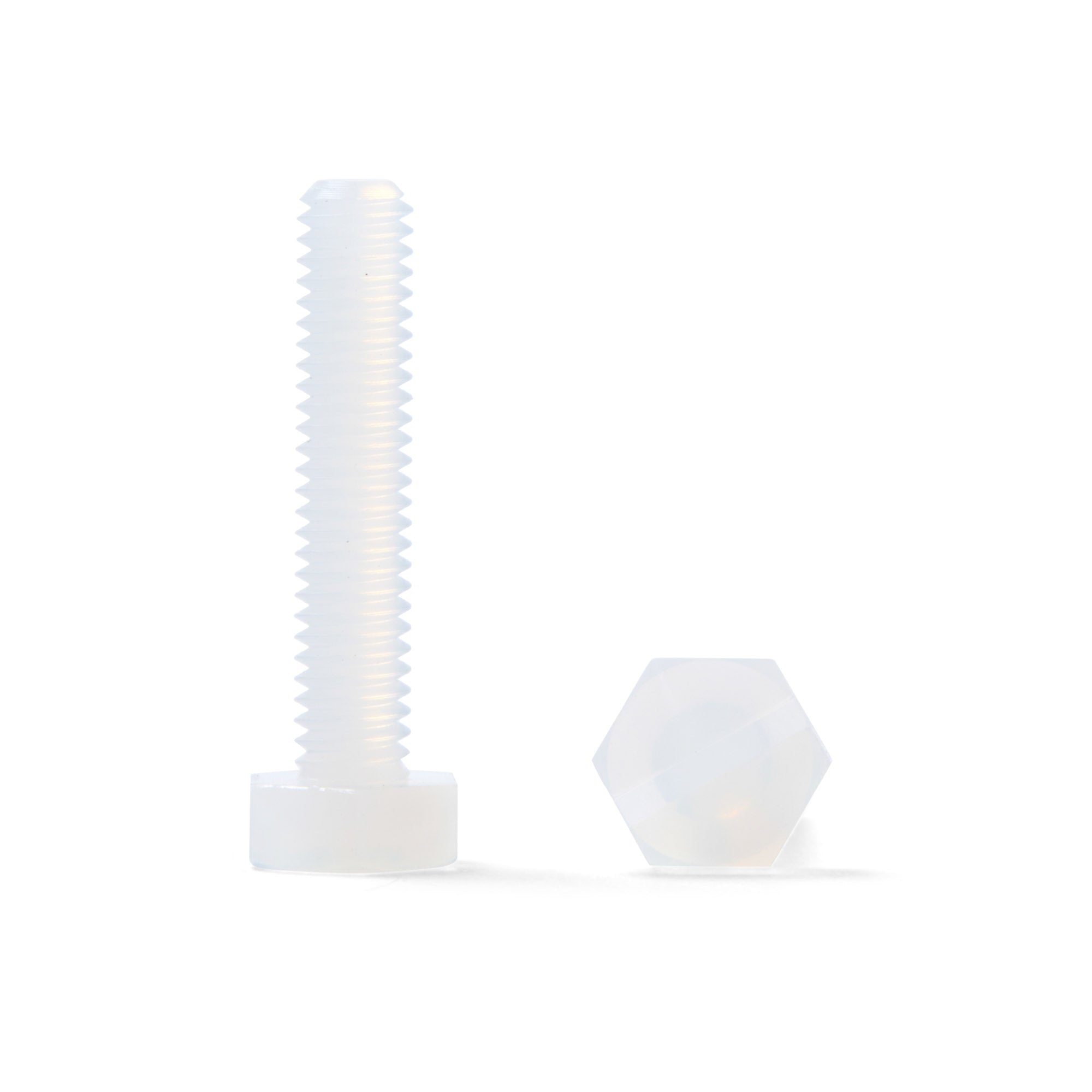

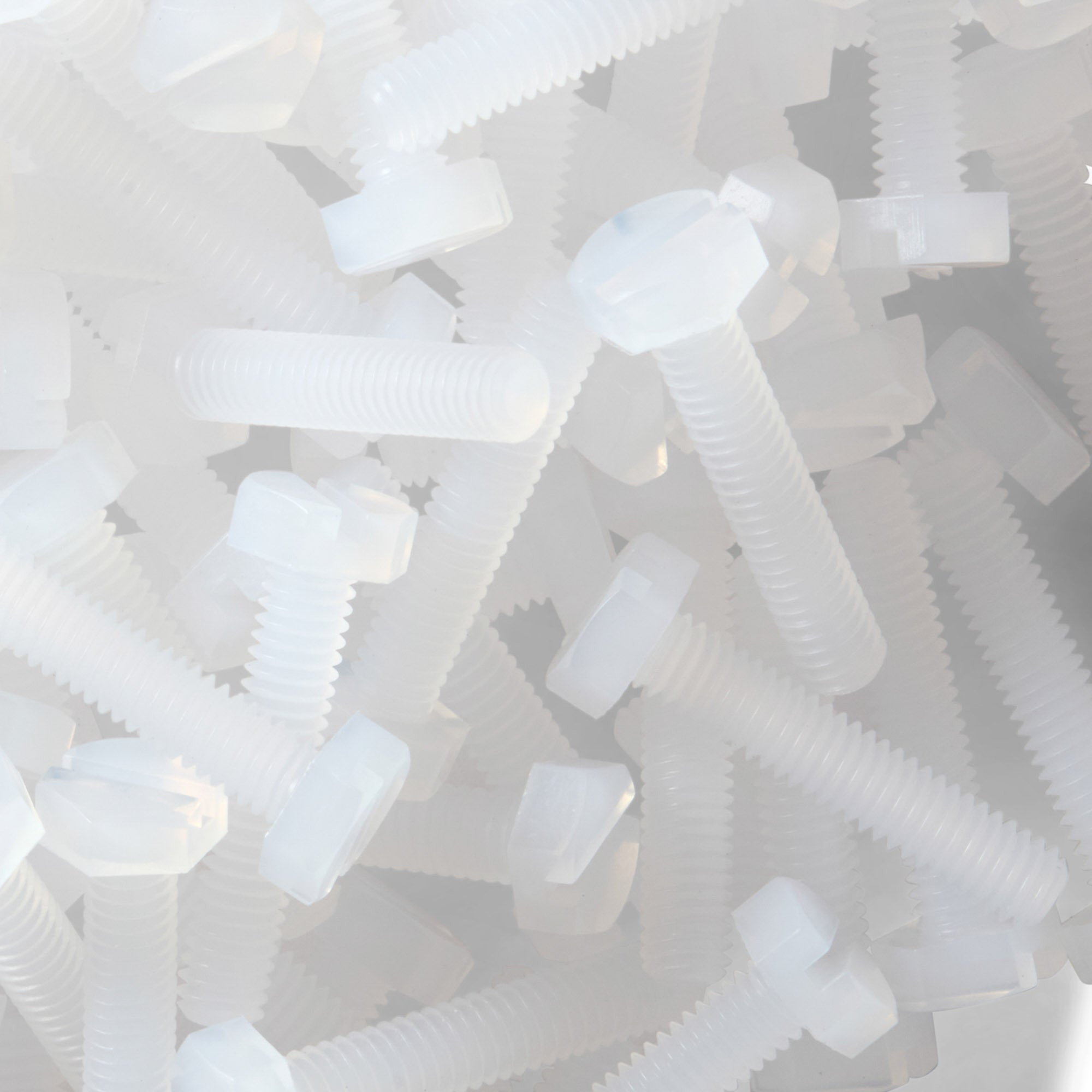

Bulloni esagonali con intaglio PFA - DIN 933 SZ

Manufactured to order.
SKU: PFASHB410
Prezzo normale €3,65 - €5,62 EUR / each Ex. VAT

Sconti per quantità disponibili:

1 Pezzo €5,62
20 Pezzi €5,34
50 Pezzi €5,06
100 Pezzi €4,50
250 Pezzi €4,22
500 Pezzi €3,93
1000 Pezzi €3,65
2000+ Pezzi Contattaci
Mostra altro Mostra meno
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PFA

Measurement System: Metric

Drive Type: Slotted Hexagon (External)

Colour: Clear/Opaque

Temperatura d'uso continuo: 260°C/500°F

Infiammabilità: UL94 V-0

Bulloni esagonali con intaglio PFA - DIN 933 SZ conform to the following Standards/Norms:

ISO 24017

DIN 933 SZ

UNI 5739

Noi di HighPerformancePolymer siamo orgogliosi di offrire bulloni esagonali con intaglio in PFA ad alte prestazioni. In qualità di esperti del settore, comprendiamo il ruolo critico della precisione e dell'affidabilità in varie applicazioni e i nostri bulloni a esagono inciso offrono prestazioni eccezionali.

Realizzati con materiale PFA di alta qualità, i nostri bulloni a esagono inciso PFA ad alte prestazioni offrono un'eccezionale resistenza chimica, stabilità termica e proprietà antiaderenti. Queste proprietà li rendono una scelta eccellente per le applicazioni in cui è essenziale un fissaggio sicuro e duraturo, soprattutto in ambienti esposti a sostanze chimiche corrosive o a temperature estreme.

Il design della testa esagonale con intaglio dei nostri bulloni è caratterizzato da una testa esagonale con un'unica fessura diritta, che consente un serraggio facile e preciso con un cacciavite a lama piatta. Questa caratteristica di facile utilizzo li rende ideali per le applicazioni che richiedono frequenti regolazioni o messe a punto.

Diamo priorità alla qualità e alle prestazioni dei prodotti e ciascuno dei nostri bulloni esagonali con intaglio in PFA ad alte prestazioni viene sottoposto a test rigorosi per soddisfare e superare gli standard del settore. Questo garantisce una soluzione affidabile e duratura per le vostre esigenze specifiche.

La versatilità è fondamentale e i nostri bulloni a esagono inciso trovano applicazione in diversi settori, tra cui quello chimico, della produzione di semiconduttori, aerospaziale e medico. Offrono soluzioni di fissaggio sicure ed efficienti in diversi ambienti, assicurando che i componenti rimangano saldamente in posizione.

I bulloni esagonali con intaglio in PFA ad alte prestazioni offrono diversi vantaggi, tra cui un'eccellente resistenza chimica, stabilità termica e proprietà antiaderenti. Queste proprietà li rendono adatti ad applicazioni critiche in cui il fissaggio affidabile e la resistenza ad ambienti difficili sono fondamentali.

In sintesi, i nostri bulloni esagonali con intaglio in PFA ad alte prestazioni offrono prestazioni meccaniche eccezionali, un design facile da usare e capacità di fissaggio affidabili. Investite nei nostri bulloni di precisione per migliorare l'efficienza e l'affidabilità delle vostre applicazioni. Provate la convenienza e la facilità d'uso che i nostri bulloni ad alte prestazioni possono offrire. Esplorate oggi stesso la nostra gamma di prodotti e scegliete HighPerformancePolymer per bulloni ad esagono incassato affidabili e durevoli che superano le aspettative.

The PFA data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Bulloni esagonali con intaglio PFA - DIN 933 SZ

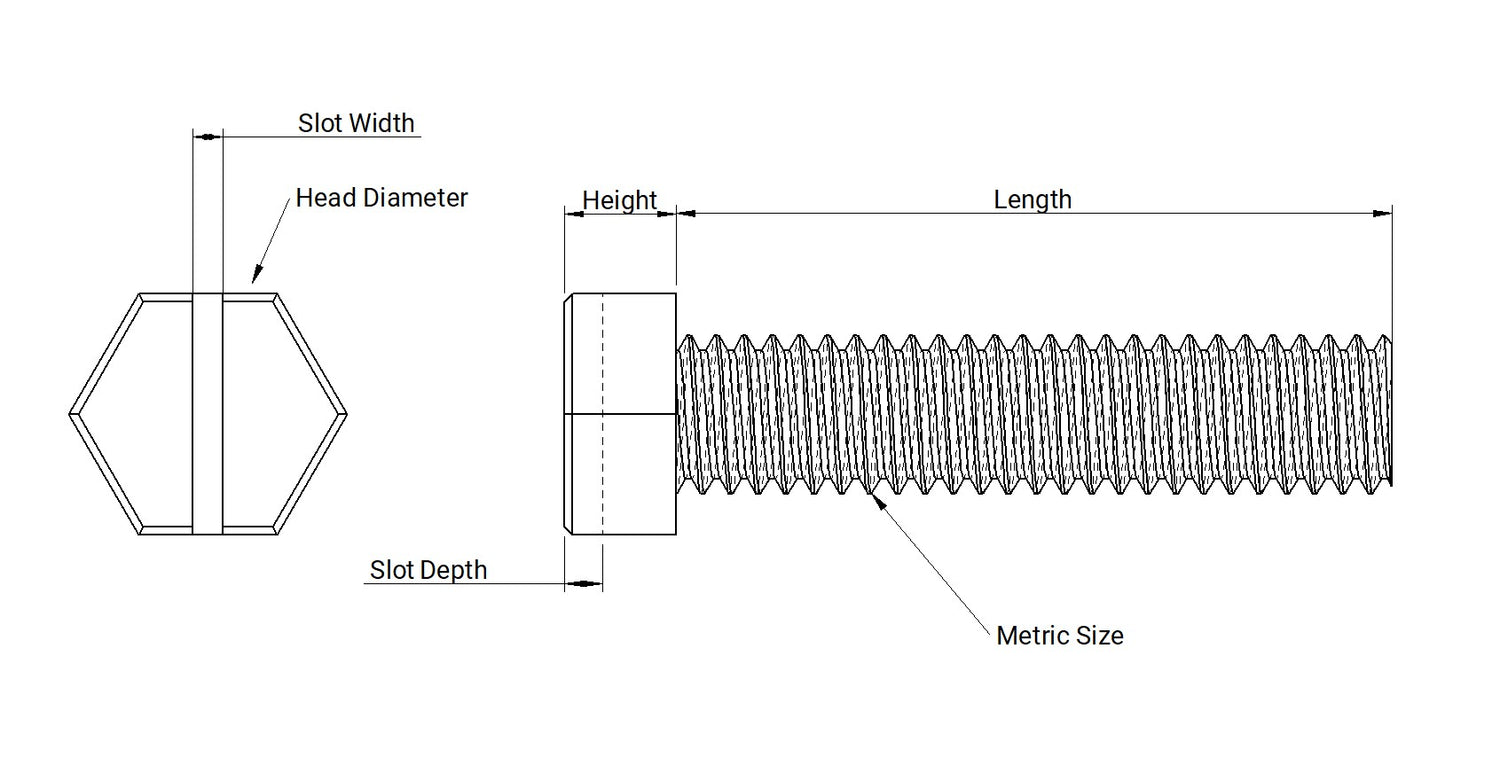

Product Drawing

Slotted Hexagon Bolt Dimension Table (ISO 24017/DIN 933 SZ)
M Size Pitch (mm) Head Width (Flat-Flat) (mm) Head Height (mm) Slot Width (mm) Slot Depth (mm)
M4 0.7 8.0 2.8 1.0 1.4
M5 0.8 10.0 3.5 1.2 1.8
M6 1.0 12.0 4.0 1.2 2.1
M8 1.25 16.0 5.5 1.6 2.8

Dimension Table

Dimensions for Bulloni esagonali con intaglio PFA - DIN 933 SZ in all available sizes are shown according to the product drawing above.

Key Perfluoroalcossi (PFA) Properties

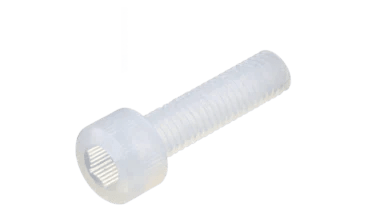

PFA Hex Socket-Cylinder Head Cap Screw - High Performance Polymer-Plastic Fastener Components

Perfluoroalcossi (PFA) Datasheet

Follow the link below to view our PFA data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PFA Key Properties

  • Exceptional Chemical Resistance:
    PFA, or Perfluoro alkoxyalkane, boasts unparalleled chemical resistance. Its molecular structure, rich in fluorine atoms, forms a virtually impenetrable barrier against corrosive substances, including acids, bases, and solvents. This property makes PFA a top choice for fasteners and components in industries where resistance to chemical attack is paramount, such as chemical processing and semiconductor manufacturing.

  • High Temperature Stability:
    One of PFA's standout features is its ability to maintain its integrity and mechanical properties at extreme temperatures. With a continuous service temperature range of -200°C to 260°C (-328°F to 500°F), PFA excels in applications where exposure to both cryogenic conditions and high-temperature processes is common. This exceptional thermal stability ensures long-term reliability in critical environments like aerospace, pharmaceuticals, and electronics.

  • Low Friction Coefficient:
    PFA exhibits a low coefficient of friction, making it an ideal material for applications where reduced friction and smooth movement are essential. Its self-lubricating properties result in minimal wear and excellent release characteristics. Consequently, PFA finds extensive use in enhancing the efficiency and lifespan of machinery across various industries, from automotive to food processing.
