PEEK OMEGA Type Spring (19.5-24-36L)
Impossibile caricare la disponibilità di ritiro
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Material: PEEK
Measurement System: Metric
Colour: Natural/Beige
Maximum Temperature: 260°C/500°F
Flammability: UL94 V-0
PEEK OMEGA Type Spring (19.5-24-36L) conform to the following Standards/Norms:

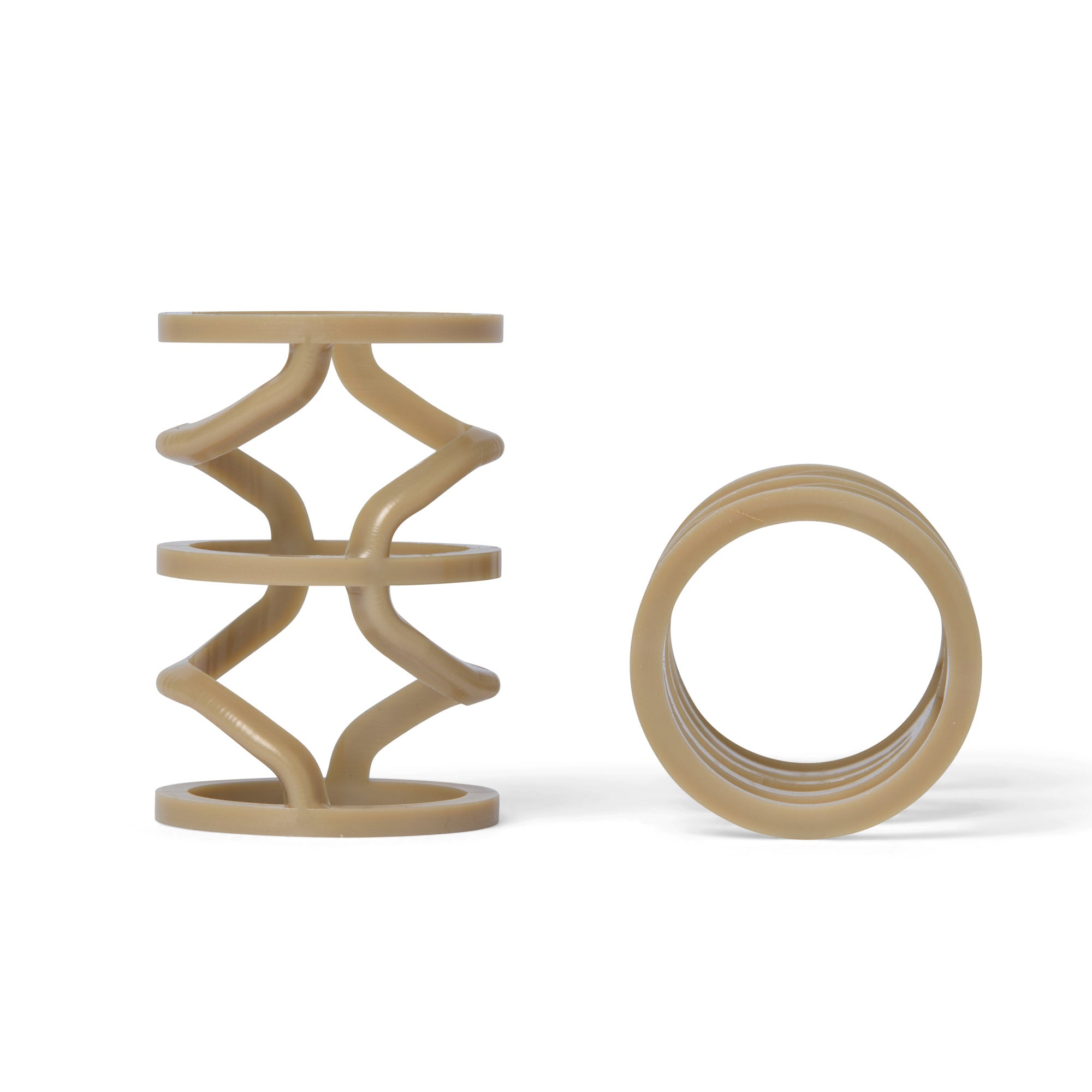

PEEK OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, are components made from Polyether Ether Ketone (PEEK), a thermoplastic known for its exceptional mechanical properties. PEEK offers high tensile and compressive strength, excellent thermal stability, and outstanding chemical resistance. These springs are engineered to provide reliable compression and durability in demanding environments, maintaining their performance and integrity across a wide range of temperatures and conditions.
Size:
Inner Diameter (mm) - 19.5mm
Outer Diameter (mm) - 24mm
Free Length (mm) - 36mm
Spring Rate (N/mm) – 1.17-1.69
Advantages of Using PEEK OMEGA Type Compression Springs:
High Mechanical Strength: PEEK provides superior tensile and compressive strength, ensuring robust performance under high-stress conditions.
Thermal Stability: PEEK maintains its mechanical properties over a wide temperature range, making these springs suitable for both high-temperature and cryogenic applications.
Chemical Resistance: PEEK is resistant to a broad spectrum of chemicals, including acids, bases, and solvents, ensuring durability in corrosive environments.
Wear and Abrasion Resistance: PEEK's excellent resistance to wear and abrasion extends the lifespan of the springs and the components they interact with.
Low Friction: The material's low friction coefficient improves efficiency in dynamic applications and reduces wear.
Dimensional Stability: PEEK maintains its shape and mechanical properties over time, ensuring consistent performance in precise applications.
Biocompatibility: PEEK is biocompatible, making it suitable for medical and pharmaceutical applications.
Specific Applications of PEEK OMEGA Type Compression Springs:
Aerospace:
Used in aircraft and spacecraft systems where lightweight, high-strength, and thermally stable components are critical.
Suitable for environments with extreme temperatures and exposure to various chemicals.
Automotive Industry:
Applied in automotive components that require high mechanical strength, thermal stability, and chemical resistance, such as in engine and transmission systems.
Medical Devices:
Utilised in medical instruments and diagnostic equipment where high precision, biocompatibility, and resistance to sterilisation processes are essential.
Industrial Machinery:
Employed in machinery and equipment that experience high wear and require robust components to maintain operational integrity.
Electronics and Electrical Equipment:
Used in the assembly of electronic devices and enclosures, where the springs' electrical insulation properties and thermal stability are beneficial.
Ideal for securing and positioning delicate components.
Chemical Processing:
Applied in securing components in chemical processing plants, where resistance to aggressive chemicals and high temperatures is crucial.
Ideal for use in pumps, valves, and reactors.
PEEK OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, offer a robust and reliable solution for various demanding applications. These springs benefit from PEEK's high mechanical strength, thermal stability, chemical resistance, wear and abrasion resistance, low friction, dimensional stability, and biocompatibility. Ideal for use in aerospace, automotive, medical devices, industrial machinery, electronics, and chemical processing industries, these springs ensure long-lasting performance and reliability in critical environments.
The PEEK data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
Inner Diameter (mm) | Outside Diameter (mm) | Free Length (mm) | Solid Height (mm) | Spring Rate (mm) |
19.5 | 24 | 36 | 18 | 1.17-1.69 |
Dimension Table

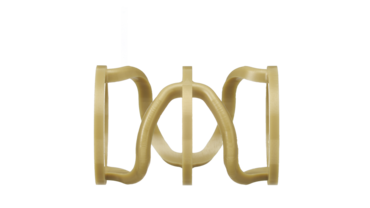

Dimensions for PEEK OMEGA Type Spring (19.5-24-36L) in all available sizes are shown according to the product drawing above.
Polyether Ether Ketone (PEEK) Datasheet
Follow the link below to view our PEEK data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.
