Rondelle piatte in PTFE

3034 in stock now, more available within 14 days.
SKU: PFEWAM3
Prezzo normale €0,21 EUR / each Ex. VAT

Instant Quote Guarantee:
Inviate una richiesta di preventivo online cliccando sul pulsante qui sotto e vi sarà recapitata nella vostra casella di posta entro 5 minuti.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Rondelle piatte in PTFE

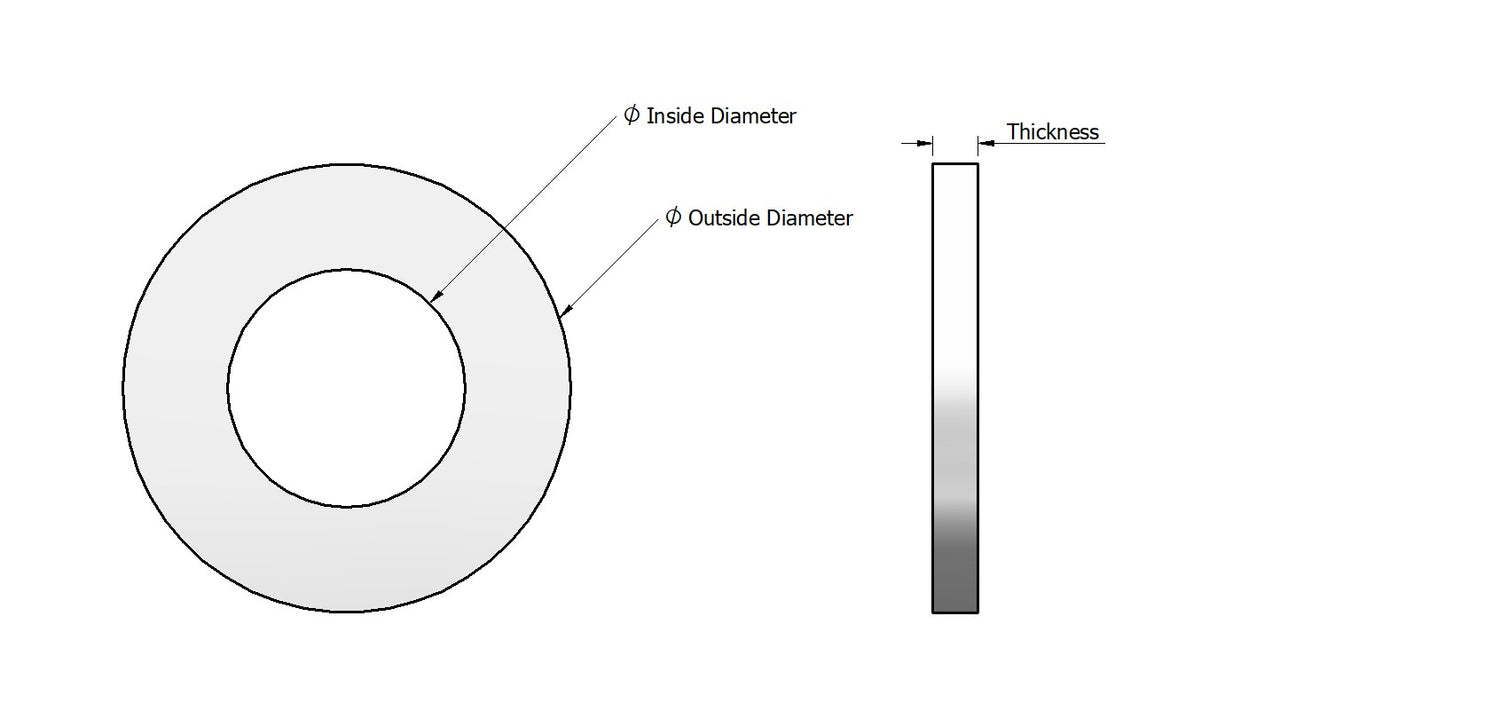

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for Rondelle piatte in PTFE in all available sizes are shown according to the product drawing above.

Polytetrafluoroethylene (PTFE/Teflon) Datasheet

Follow the link below to view our PTFE data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PTFE Key Properties

  • Exceptional Chemical Resistance - Perfect for applications in the pharma sector.

    Low Adhesive Properties - Ideal for application that require self lubrication.

    High UV Resistance - Low rates of deterioration in external applications.

    Low Water Absorption Rates - A great alternative to nylon.

  • - Max operation temperature 260°C

    - Ultra low weight

    - Flame resistance (V-0)

    - Abrasion resistance

    - Hydrolysis resistance

    - Great electrical insulating properties

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Material flexibility

    - Low coefficent of friction

    - High thermal stability

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.

Highly Competitive Prices

We offer price matching against all UK distrubutors. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
