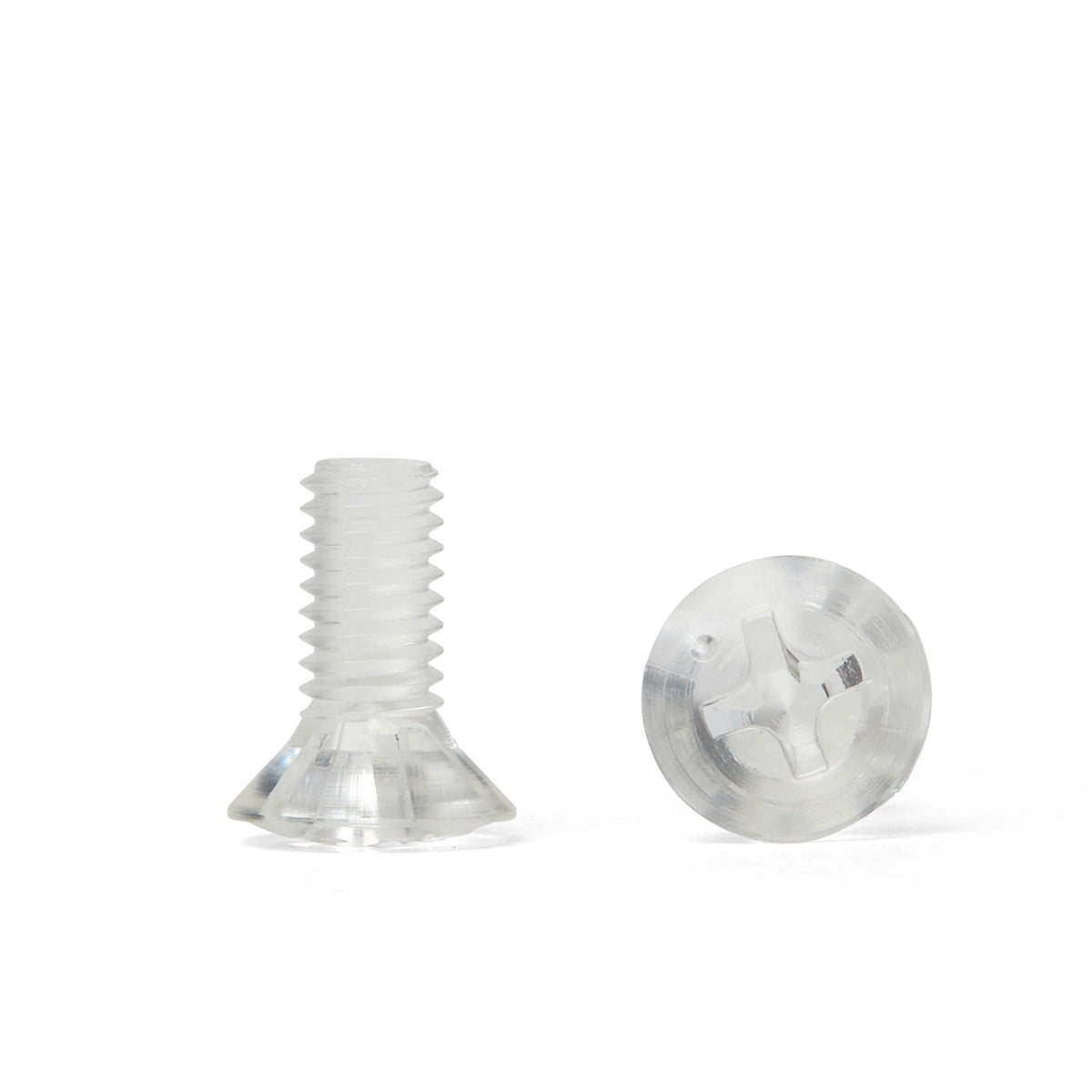

Viti a cupola svasata in policarbonato - Phillips con intaglio a croce - DIN 965

Manufactured to order.
SKU: PCCKD305
Prezzo normale €0,05 - €0,08 EUR / each Ex. VAT

Sconti per quantità disponibili:

1 Pezzo €0,08
500 Pezzi €0,08
1000 Pezzi €0,07
2500 Pezzi €0,06
5000 Pezzi €0,06
10000 Pezzi €0,06
20000 Pezzi €0,05
30000+ Pezzi Contattaci
Mostra altro Mostra meno
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PC

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: Transparent/Natural

Temperatura d'uso continuo: 115°C/239°F

Infiammabilità: UL94 V-2

Viti a cupola svasata in policarbonato - Phillips con intaglio a croce - DIN 965 conform to the following Standards/Norms:

ISO 7046

DIN 965

CSN 021152

PN 82208

UNI 7688

Le viti a testa svasata in policarbonato (PC) hanno le stesse specifiche dimensionali delle nostre viti a testa svasata in PC standard, ma presentano una cupola sporgente simile a quella delle nostre viti a testa bombata.

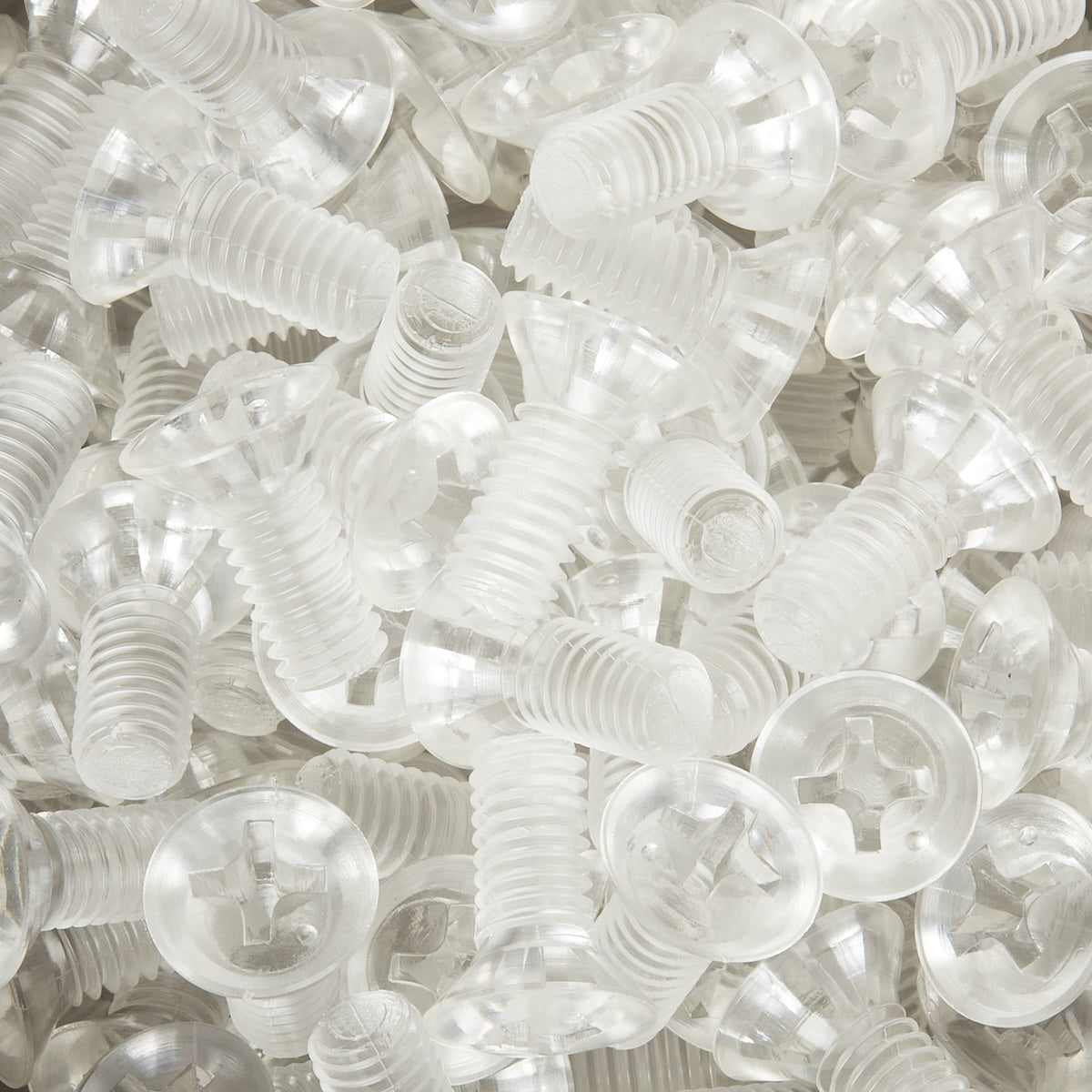

Le nostre viti a testa svasata con calotta in PC sono di colore trasparente.

Le viti a testa svasata di HPP sono prodotte con un tipo di trasmissione a croce Phillips standard (da n. 1 a n. 3), che consente di ottenere una coppia di serraggio più che adeguata alle specifiche del dispositivo di fissaggio.

L'angolo di testa standard per tutte le nostre viti a testa svasata bombata è di 90 gradi.

Le nostre viti PC sono comunemente utilizzate in applicazioni generali grazie al basso costo unitario, all'elevata resistenza agli urti e alle proprietà non corrosive.

Il certificato di conformità è disponibile su richiesta.

Di seguito è riportato un link alla nostra scheda tecnica.

Cosa sono le viti a testa svasata in policarbonato?

Il policarbonato è un tipo di plastica noto per la sua forza, trasparenza e resistenza agli urti. Viene spesso utilizzato in applicazioni che richiedono queste proprietà, come la costruzione di finestre, occhiali e componenti elettronici.

Le viti a testa svasata sono viti con testa conica, affusolata e piatta, che consente di affondare nella superficie del materiale su cui viene fissata. Sono utilizzate nelle applicazioni in cui si desidera una finitura a filo, in quanto la testa della vite si trova a filo con la superficie del materiale.

Le viti a cupola sono un tipo di vite svasata con testa rotonda e a forma di cupola. Si utilizzano in applicazioni in cui si desidera un profilo basso e una finitura liscia.

Le viti a testa svasata in policarbonato sono viti a testa svasata in policarbonato. Vengono utilizzate in una serie di applicazioni in cui si desidera combinare la forza, la trasparenza e la resistenza agli urti del policarbonato con la praticità di una vite a testa svasata. Sono tipicamente utilizzate in applicazioni in cui queste proprietà sono necessarie, come nella costruzione di finestre, occhiali e componenti elettronici.

The PC data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Viti a cupola svasata in policarbonato - Phillips con intaglio a croce - DIN 965

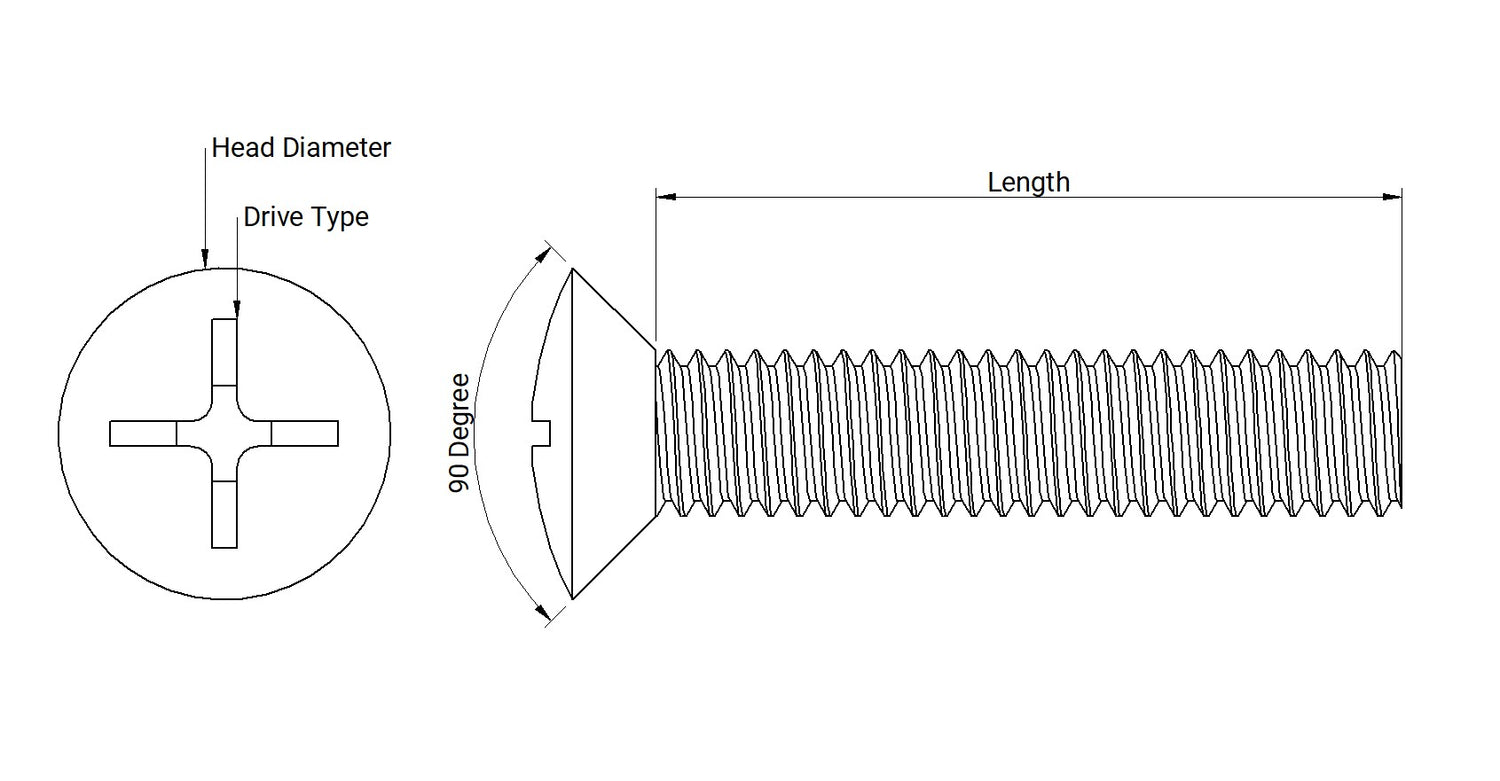

Product Drawing

Countersunk/Flathead Screw Dimension Table (ISO 7046/DIN 965)
M Size Pitch (mm) Head Diameter (mm)
M2 0.4 4.0
M2.5 0.45 5.0
M2.6 0.45 5.2
M3 0.5 6.0
M4 0.7 8.0
M5 0.8 10.0
M6 1.0 12.0
M8 1.25 16.0

Dimension Table

Dimensions for Viti a cupola svasata in policarbonato - Phillips con intaglio a croce - DIN 965 in all available sizes are shown according to the product drawing above.

Key Policarbonato (PC) Properties

Policarbonato (PC) Datasheet

Follow the link below to view our PC data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PC Key Properties

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance
