Dimension Table

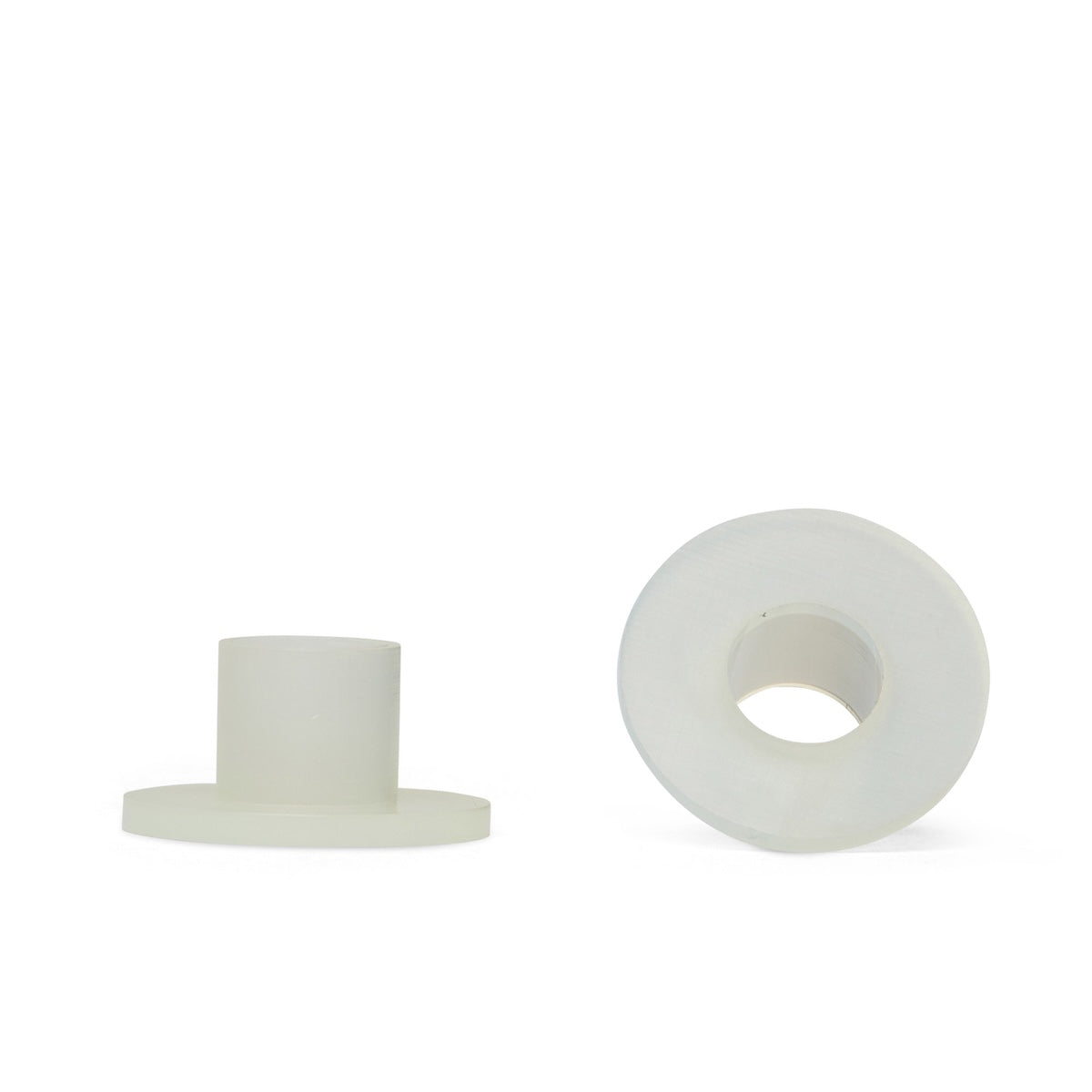

Dimensions for Polyamide PA66 (Nylon 66) Flanged Bushing in all available sizes are shown according to the product drawing above.
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Material:
Measurement System: Metric
Natural
Polyamide PA66 (Nylon 66) Flanged Bushing conform to the following Standards/Norms:
Polyamide 66 (PA 66) Bushing is a versatile and robust component designed to provide durable support and reduce friction in mechanical assemblies. Manufactured from high-quality PA 66 material, these bushings offer exceptional mechanical properties and resistance to wear, making them indispensable in various industrial applications.
Advantages:
High Strength: PA 66 material provides excellent mechanical strength, ensuring reliable support and durability in demanding environments.
Wear Resistance: Resistant to abrasion and wear, PA 66 bushings offer long-lasting performance, reducing the need for frequent maintenance or replacement.
Low Friction: The smooth surface of PA 66 bushings reduces friction, enabling smooth and efficient operation of moving parts in mechanical assemblies.
Corrosion Resistance: PA 66 bushings are resistant to corrosion and rust, making them suitable for use in harsh environments or applications exposed to moisture.
Dimensional Stability: Maintains precise dimensions under varying temperature and humidity conditions, ensuring consistent performance over time.
Chemical Resistance: Exhibits excellent resistance to a wide range of chemicals, ensuring compatibility with various substances commonly encountered in industrial environments.
Applications:
Automotive Industry: Used in automotive suspension systems, steering mechanisms, and gearbox assemblies for providing support and reducing friction in moving components.
Machinery and Equipment: Applied in machinery and equipment assemblies for supporting rotating shafts, gears, and bearings, ensuring smooth operation and reducing wear.
Construction: Utilised in construction machinery and equipment for supporting hydraulic cylinders, pivots, and articulated joints, providing reliable operation and longevity.
Aerospace Industry: Incorporated into aircraft assemblies for supporting control surfaces, landing gear components, and engine mounts, ensuring precision and reliability in critical applications.
Marine Applications: Used in marine equipment and vessels for supporting propeller shafts, rudders, and steering mechanisms, providing corrosion resistance and durability in saltwater environments.
Industrial Machinery: Applied in various industrial machinery for supporting conveyor rollers, linkages, and sliding mechanisms, enhancing efficiency and reducing maintenance requirements.
In summary, Polyamide 66 (PA 66) Bushings offer exceptional strength, wear resistance, and chemical resistance, making them ideal for a wide range of applications across industries, including automotive, machinery, construction, aerospace, marine, and industrial machinery.
The data sheet is available as a PDF to download below.
