Casa » Viti a testa cilindrica con intaglio in poliammide PA66 (nylon) - DIN 551
High Performance Polymer

Viti a testa cilindrica con intaglio in poliammide PA66 (nylon) - DIN 551

45 In Stock
SKU: PASG304
€0,06 EUR / each Ex. VAT
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PA66

Measurement System: Metric

Drive Type: Slotted

White

Temperatura d'uso continua: 100°C. Massima temperatura: 170°C

Infiammabilità: UL94 HB

Viti a testa cilindrica con intaglio in poliammide PA66 (nylon) - DIN 551 conform to the following Standards/Norms:

ISO 4766

DIN 551

CSN 021181

PN 82272

UNI 4766

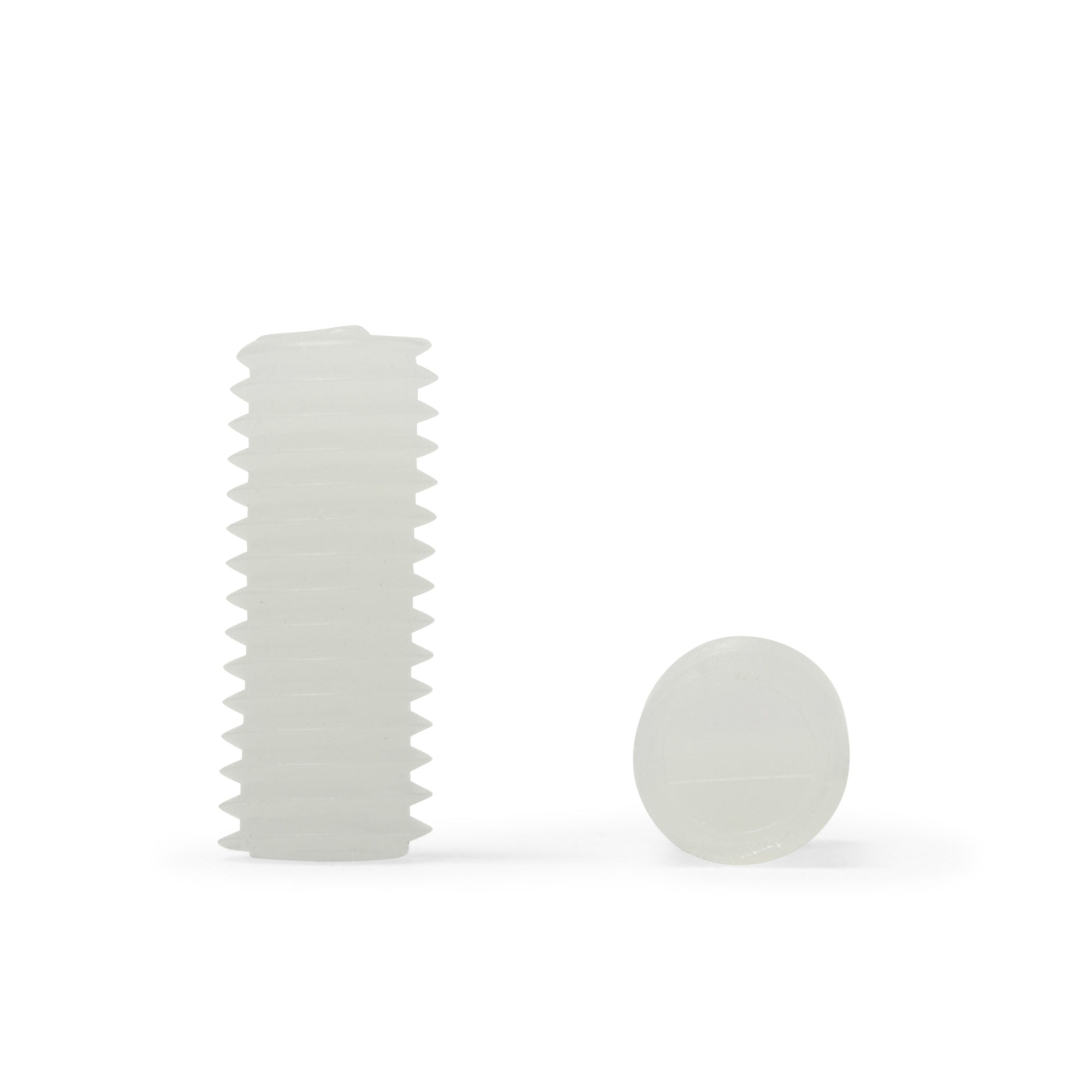

Le nostre viti di estirpazione in nylon con intaglio sono caratterizzate da un design senza testa e da una scanalatura diritta, che consente l'installazione a filo o a incasso con un cacciavite a lama piatta. Conformi alle specifiche DIN 551, sono tipicamente utilizzate in applicazioni che richiedono un posizionamento assiale sicuro dei componenti senza hardware sporgente, il che le rende ideali per assemblaggi compatti e sistemi sensibili alle superfici.

Applicazioni
Le viti con intaglio in nylon sono spesso utilizzate nei sistemi meccanici di precisione, nell'elettronica e negli strumenti di laboratorio. Le loro proprietà non conduttive e non magnetiche le rendono particolarmente adatte a fissare alberi, collari e parti rotanti in apparecchiature elettriche o sensibili alle radiofrequenze. Questi elementi di fissaggio sono spesso utilizzati nei punti di regolazione o nei meccanismi di calibrazione dei dispositivi ottici, medici e metrologici, dove è essenziale ridurre al minimo il danneggiamento della filettatura e la ripetibilità del controllo del carico.

Il loro utilizzo include assemblaggi strutturali leggeri, hardware isolante per il montaggio di PCB e fissaggio da plastica a plastica, dove la resistenza chimica e le caratteristiche di bassa abrasione contribuiscono a mantenere l'affidabilità a lungo termine. Offrono un'eccellente resistenza meccanica, un basso assorbimento d'acqua e stabilità dimensionale in un ampio intervallo di temperature. Queste viti presentano inoltre una buona resistenza agli oli, ai carburanti e alla maggior parte dei solventi industriali, rendendole adatte agli ambienti più difficili.

Se il vostro sistema necessita di un componente di bloccaggio leggero, di una vite di posizionamento resistente alla corrosione o di un punto di regolazione elettricamente neutro, le viti con intaglio in nylon di HPP offrono una soluzione ingegnerizzata per applicazioni di fissaggio tecniche e specialistiche.

The PA66 data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
Grub/Set Screw Dimension Table
M Size Pitch (mm) Slot Width (mm) Slot Depth (mm)
M3 0.5 0.4 0.75
M5 0.8 0.8 1.28
M8 1.25 1.2 2.0

Dimension Table

Dimensions for Viti a testa cilindrica con intaglio in poliammide PA66 (nylon) - DIN 551 in all available sizes are shown according to the product drawing above.

Key Poliammide Nylon (PA66) Properties

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PA66 Key Properties

  • Polyamide Nylon (PA66) is distinguished by its superior mechanical strength and stiffness, making it an excellent material for applications that require high load-bearing capacity and dimensional stability. PA66 has a higher melting point compared to other nylon grades, which contributes to its enhanced rigidity and durability. This property is particularly beneficial in engineering applications such as automotive components, industrial machinery parts, and structural elements, where materials must maintain their form and performance under heavy mechanical stress and at elevated temperatures.

  • PA66 is also known for its excellent wear and abrasion resistance, which makes it ideal for applications involving continuous friction and contact. Its ability to resist surface degradation ensures that components made from PA66, such as gears, bushings, and bearings, have a long service life with minimal maintenance requirements. This property is especially valuable in high-wear environments like conveyor systems, mechanical assemblies, and moving parts, where maintaining operational efficiency and reducing downtime are critical.

  • Another key property of Polyamide Nylon (PA66) is its high chemical and thermal resistance. PA66 can withstand exposure to a wide range of chemicals, including oils, greases, and solvents, without degrading, making it suitable for use in chemical processing equipment and automotive fuel systems. Additionally, PA66's ability to retain its mechanical properties at elevated temperatures makes it ideal for applications that involve heat, such as engine components and electrical insulators. The combination of chemical and thermal resistance ensures that PA66 performs reliably in harsh and demanding environments, providing long-term durability and stability.
