Dimension Table
Dimensions for PTFE Coated Stainless Steel Slotted Cheese Head Screw in all available sizes are shown according to the product drawing above.
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Material: PTFE Coated
Measurement System: Metric
Drive Type: Slotted
Blue
260°C
UL94 V0
PTFE Coated Stainless Steel Slotted Cheese Head Screw conform to the following Standards/Norms:
ISO 1207
DIN 84
CSN 021131
PN 82215
UNI 6107

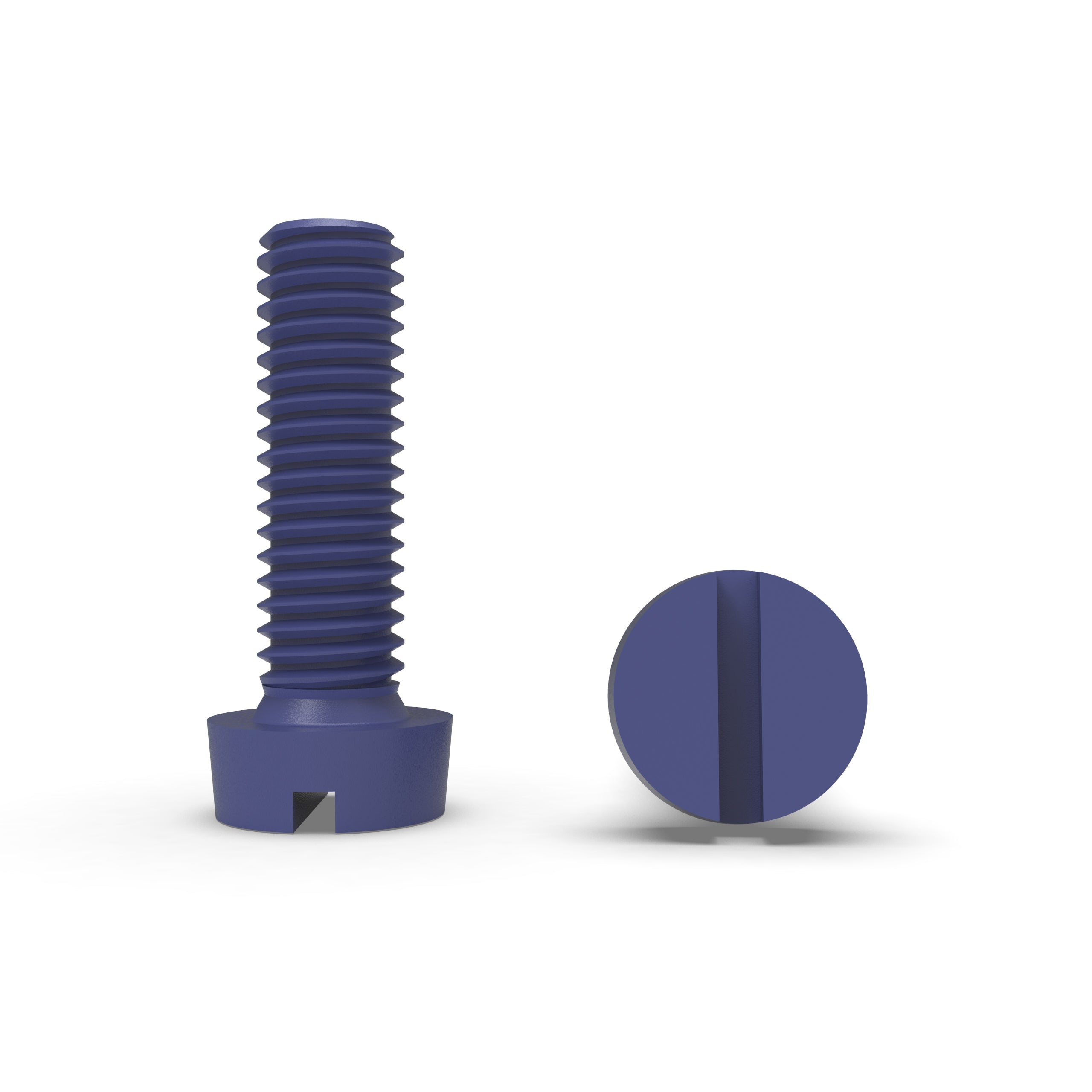

PTFE Coated Stainless Steel Slotted Cheese Head Screws, available in sizes ranging from M5 to M8 with lengths between 8mm and 100mm. These high-quality screws feature a cylindrical head with a flat top and a single slot, allowing for easy tightening and loosening with a flat-blade screwdriver. Crafted from premium stainless steel and coated with PTFE (Polytetrafluoroethylene), they offer exceptional corrosion resistance, low friction, and enhanced durability. The PTFE coating provides a non-stick surface and excellent chemical resistance, making these screws ideal for applications in harsh environments, woodworking, furniture assembly, and general construction, where reliable and long-lasting fastening solutions are essential.
Metric Size – M5, M6, M8
Length (mm) – 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 100
PTFE (Polytetrafluoroethylene) coated stainless steel combines the benefits of both materials to form a versatile and highly functional composite. Here's an overview of its properties:
What is a Slotted Cheese Head Screw?
A slotted cheese head screw is a fastener with a cylindrical head, a flat top, and a single slot across its diameter, allowing for tightening or loosening with a flat-blade screwdriver. These screws are commonly used in applications requiring frequent adjustments or removals, such as woodworking, furniture assembly, and general construction, offering secure and reliable fastening with easy accessibility and adjustment using common hand tools.
The PTFE Coated data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
Size | Head Height (mm) | Across Flats (mm) |
M2 | 3 | 1.6 |
M2.5 | 3.5 | 1.6 |
M3 | 5 | 2 |
M4 | 7 | 2.8 |
M5 | 8 | 3.5 |
M6 | 10 | 4 |
M8 | 13 | 5.3 |
Dimensions for PTFE Coated Stainless Steel Slotted Cheese Head Screw in all available sizes are shown according to the product drawing above.
