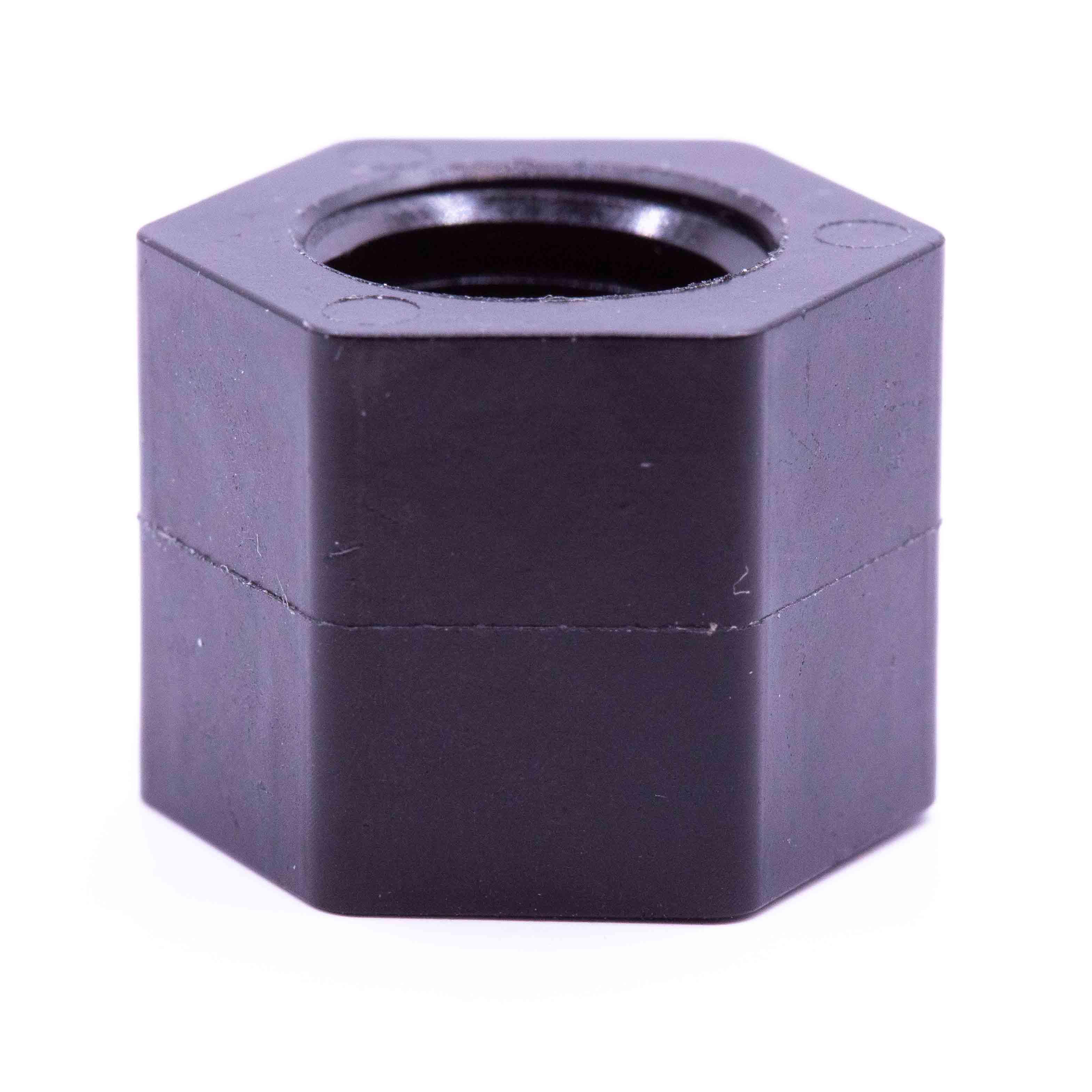

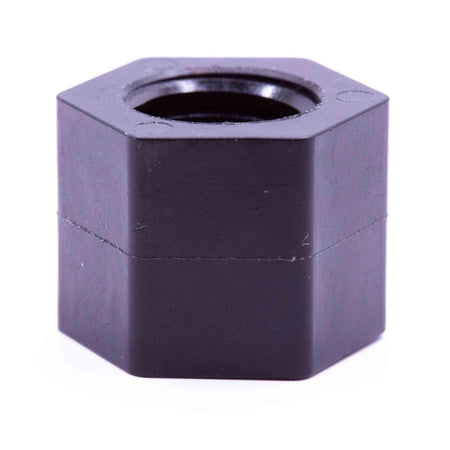

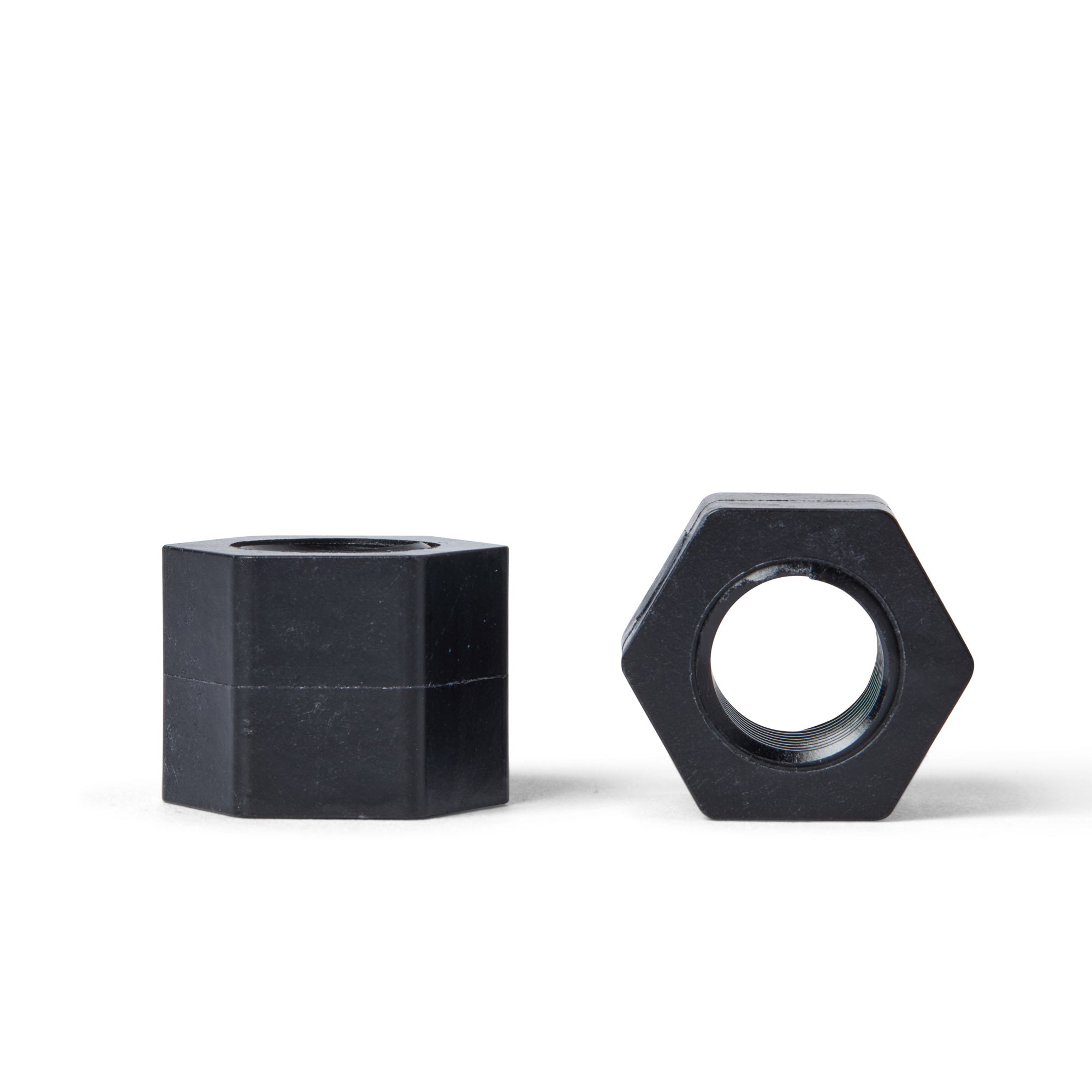

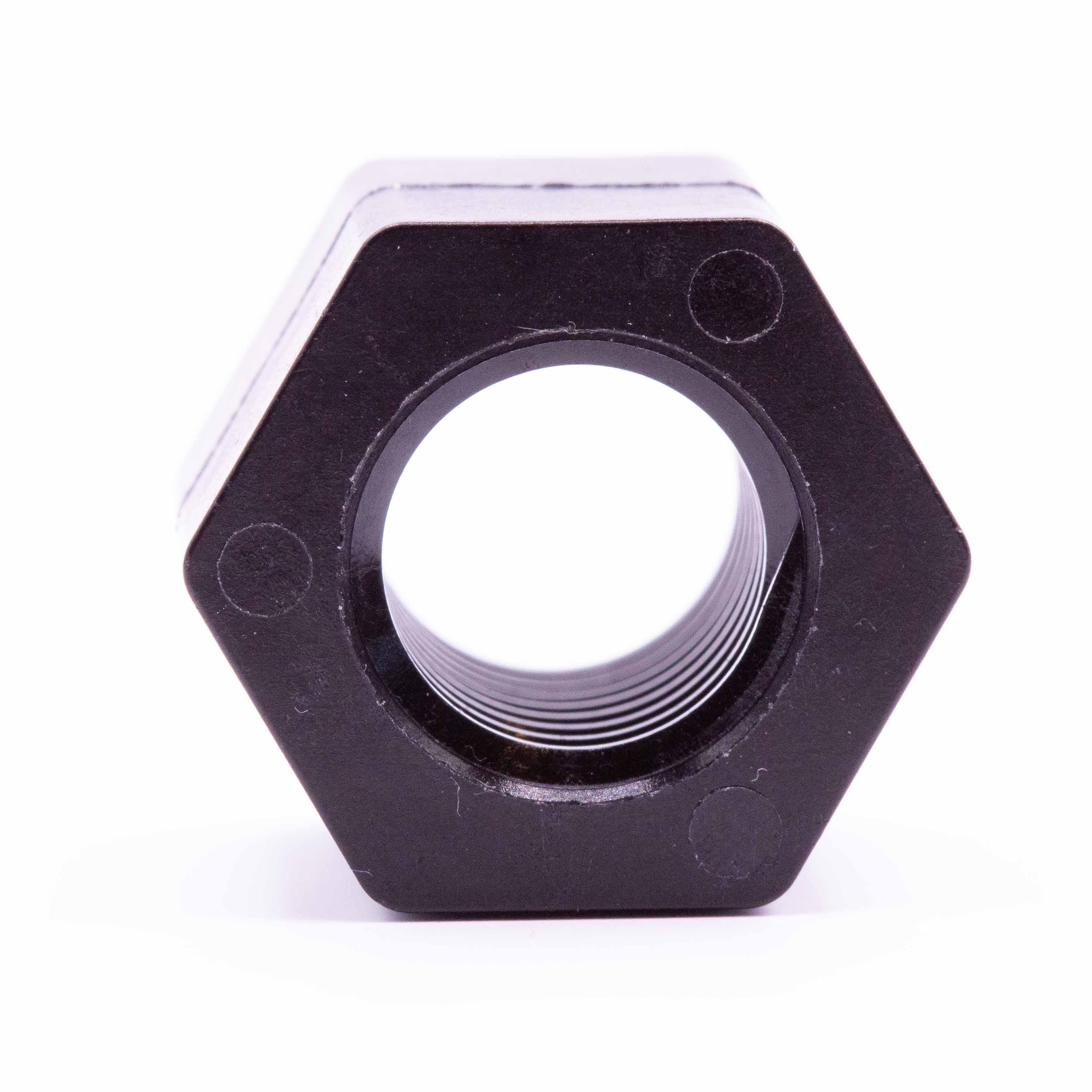

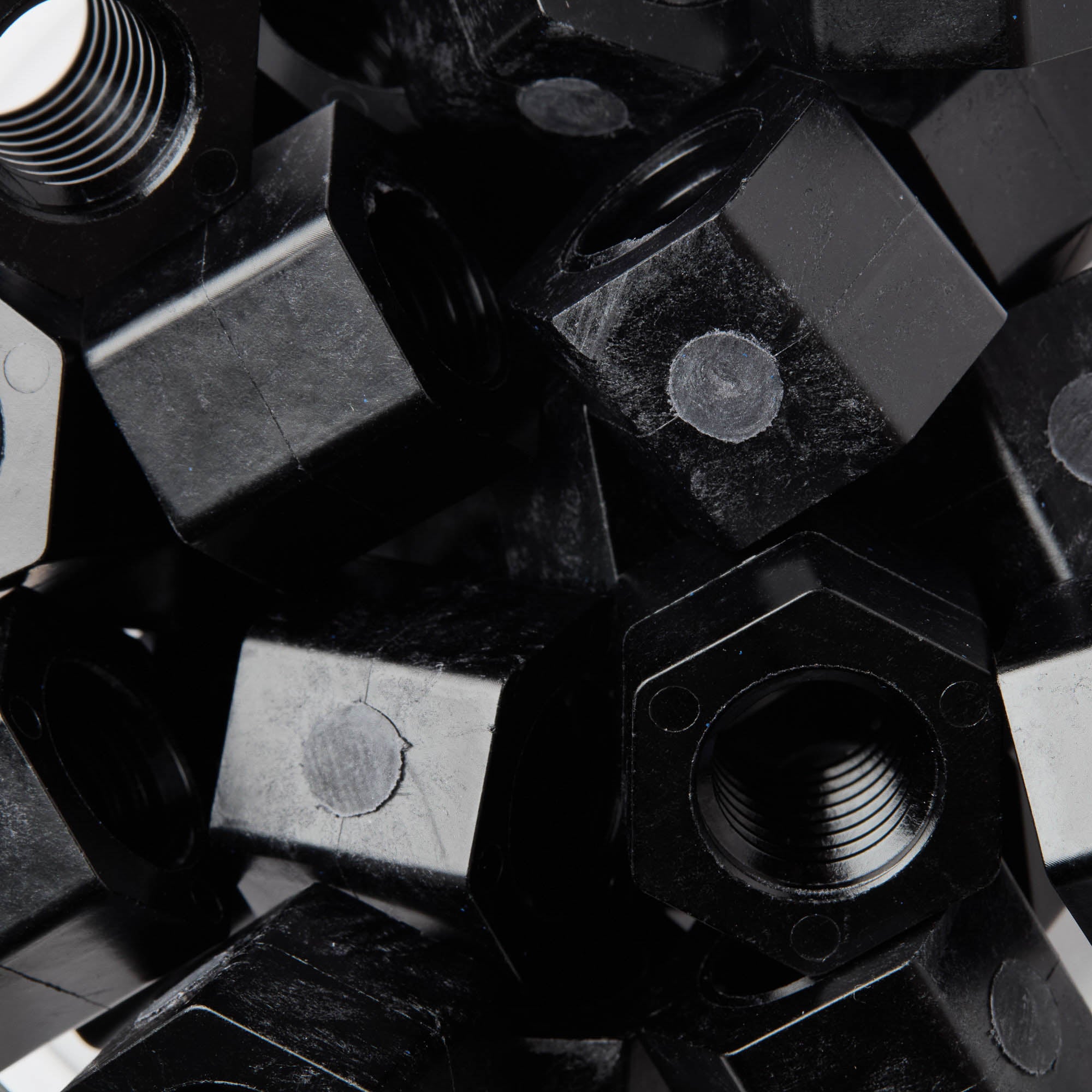

Dadi esagonali KYOUJIN - DIN 934

40 In Stock
SKU: KYHNM12
Prezzo normale €8,20 EUR / each Ex. VAT
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: KYOUJIN

Measurement System: Metric

Drive Type: Hexagon (External)

Colour: Black

Temperatura d'uso continuo: 120°C/248°F

Infiammabilità: UL94 HB

Dadi esagonali KYOUJIN - DIN 934 conform to the following Standards/Norms:

ISO 4032

DIN 934

CSN 021401

PN 82144

UNI 5588

Vi presentiamo Kyoujin, i dadi esagonali in polimero di ultima generazione. I Kyoujion sono tra i dadi polimerici a più alta resistenza alla trazione presenti sul mercato e rappresentano un'alternativa diretta agli equivalenti metallici.

Il materiale dei Kyoujin è composto per il 60% da PA66 rinforzato con fibre di vetro.

Questi dadi esagonali hanno un tipo di azionamento esagonale standard per l'uso con una chiave o una bussola (le dimensioni sono indicate nella tabella precedente).

Forniamo solo elementi di fissaggio della massima qualità e i nostri dadi esagonali non sono da meno. Sono prodotti secondo i più alti standard qualitativi e con tolleranze molto strette. Ogni dado viene controllato singolarmente con apparecchiature metrologiche, sia dal punto di vista dimensionale che visivo, per verificare che non vi siano difetti di materiale.

The KYOUJIN data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Dadi esagonali KYOUJIN - DIN 934

Product Drawing

Hexagon Nut Dimension Table (ISO 4032/DIN 934)
M Size Pitch (mm) Width (Flat-Flat) (mm) Thickness (mm)
M2 0.4 4.0 1.6
M2.6 0.45 5.0 2.0
M2.5 0.45 5.0 2.0
M3 0.5 5.5 2.4
M4 0.7 7.0 3.2
M5 0.8 8.0 4.0
M6 1.0 10.0 5.0
M8 1.25 13.0 6.5
M10 1.50 17.0 8.0
M12 1.75 19.0 10.0

Dimension Table

Dimensions for Dadi esagonali KYOUJIN - DIN 934 in all available sizes are shown according to the product drawing above.

Key PA66 - Rinforzata con il 60% di fibra di vetro Properties

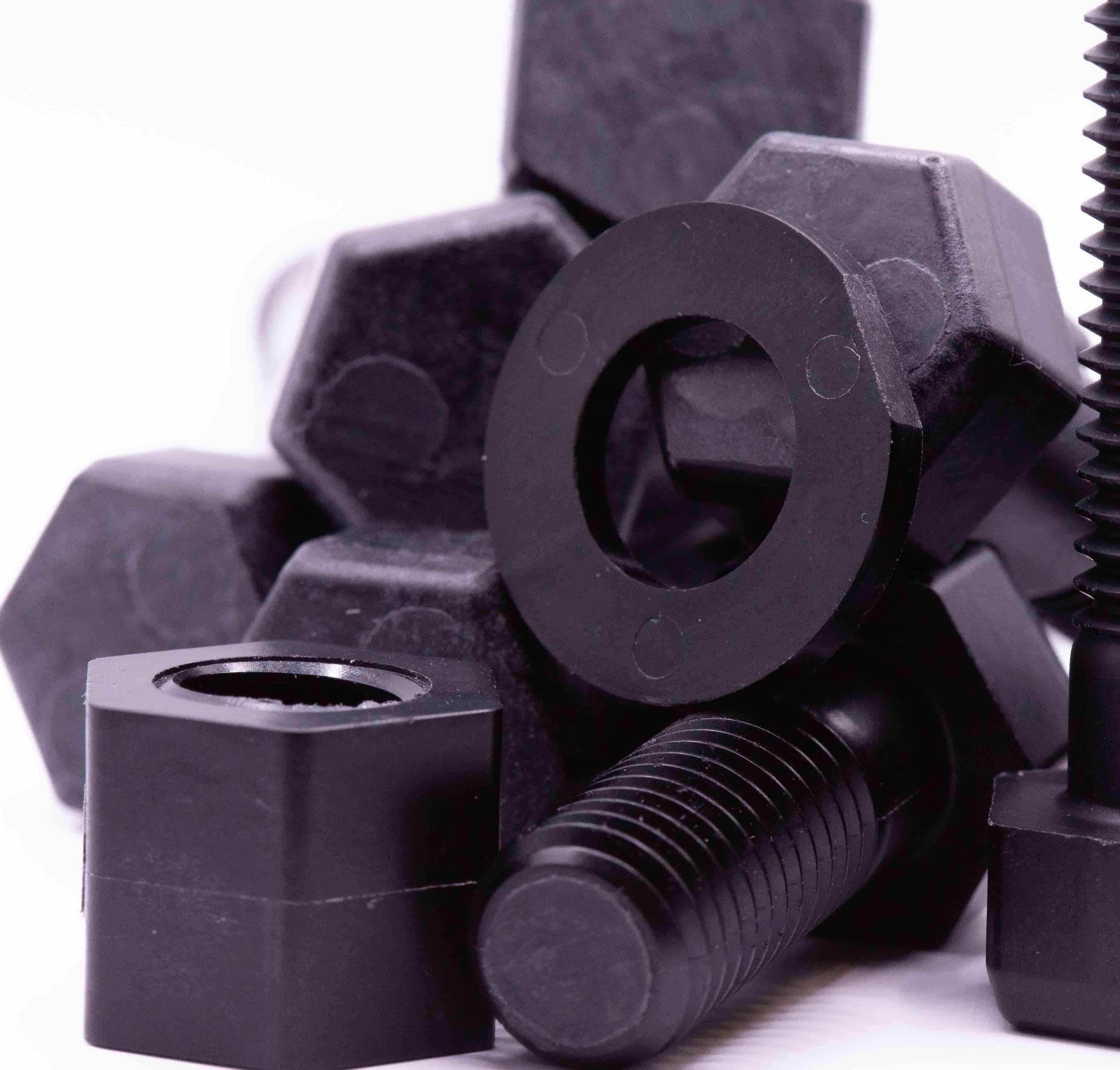

KYOUJIN Hexagon Bolts - High Performance Polymer-Plastic Fastener Components

PA66 - Rinforzata con il 60% di fibra di vetro Datasheet

Follow the link below to view our KYOUJIN data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

KYOUJIN Key Properties

  • True metal replacement - Kyoujin is designed to replace metallic hardware to remove the possibility of corrosion and material degradation over time.

    Exceptional dimensional stability - Even at high temperatures (up to 220°).

    Excellent weight to strength ratio - Specific gravity (1.69).

  • Exceptional tensile strength - All the benefits of a polymer fastener with strength comparable to metallic components. (17,492N tensile rupture force).

    - Low water absorption

    - Non-Magnetic

  • - Bassa conducibilità termica. - Non corrosivo.
